Chicken Farm Q235 Automatic Poultry Feeding System Wire With Dispensing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Chicken Feeder Cages For Broiler | Product Name | Cages For Broiler |
|---|---|---|---|
| Application | Poultry Field Cages For Broiler | Material | Hot Dip Galvanized Cages For Broiler |
| Color | Silver Cages For Broiler | Usage | Chicken Raising Cages For Broiler |
| Feature | Durable Cages For Broiler | Advantage | Long Time Used Cages For Broiler |
| Size | 650*1250*2300(cm) Cages For Broiler | Capacity | 200-300 Chickens/set Cages For Broiler |
| High Light | Automatic Poultry Feeding System Q235,Q235 Automatic Feeding System For Poultry,Multi Layer Automatic Broiler Feeding System |
||
Product Description
Yin Xing Poultry Equipment Customized Multi-Style Multi-Layer Chicken Cage
Automatic Poultry Feeding System Working Methods

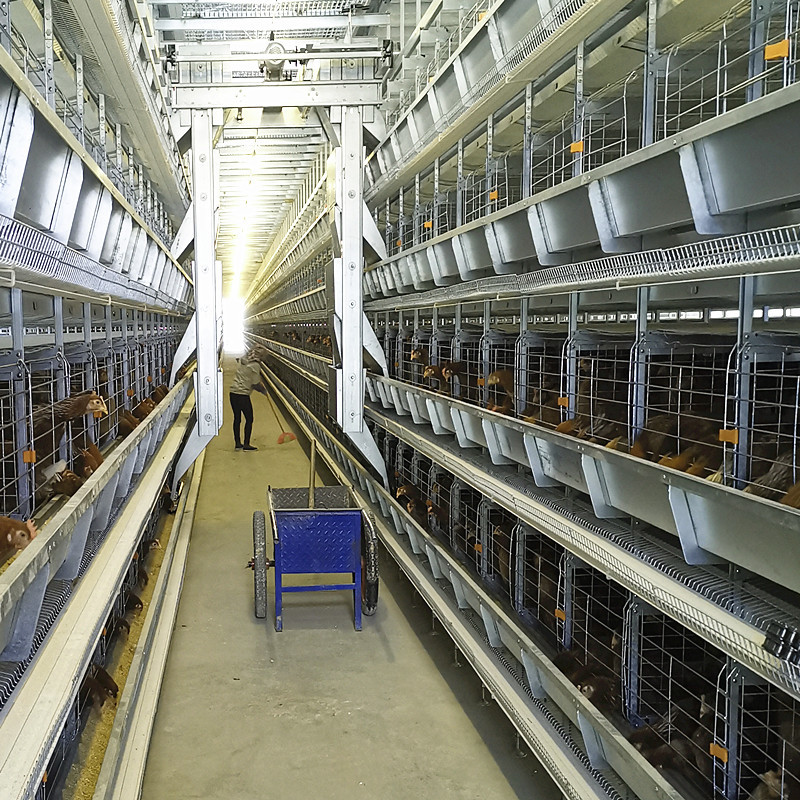

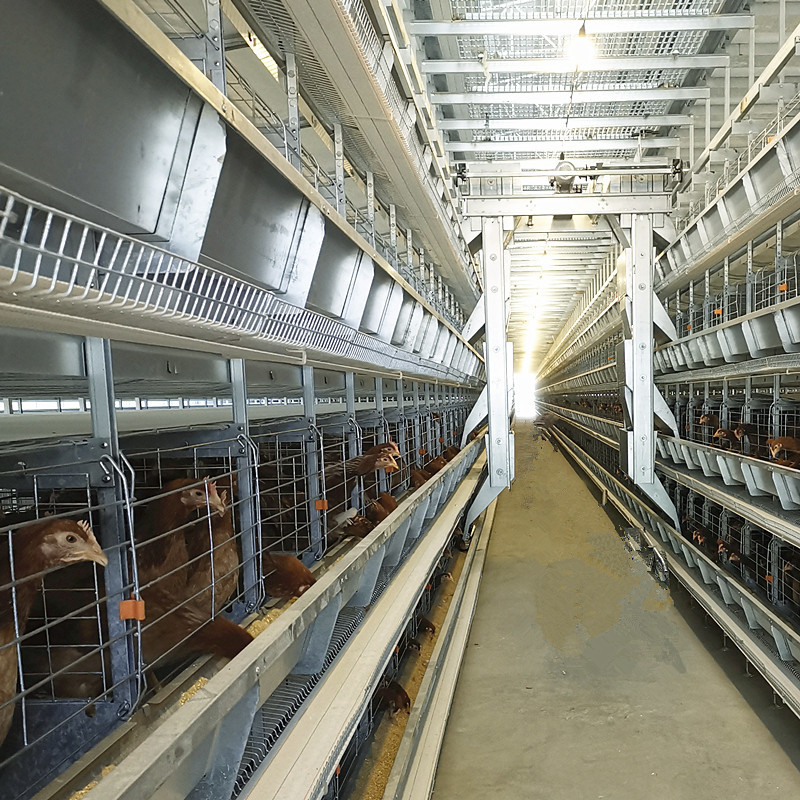

Hopper trolley feeding carts method ismore and more popular for the chicken farms, which is to firstly transport the feed from the silo outside of poultry house to the front hopper of each line of chicken cage through the spring auger, and then evenly convey and dispense the feed to the feed trough of each layer cage through the moving carts. The feed capacity supply in the feed trough can be adjusted by the leveler.
Battery Poultry Chicken Layer Cage Specification
| A Frame Battery Poultry Chicken Layer Cage | ||||||||
| Model | Length(mm) | Width(mm) | Heigh(mm) | Cells Qty | Birds Qty/Set | |||
| 3 Tiers | 1950 | 2300 | 1500 | 5 | 90 | |||
| 4 Tiers | 1950 | 2300 | 1900 | 5 | 120 | |||
| 3 Tiers | 1950 | 2300 | 1600 | 4 | 96 | |||
| 4 Tiers | 1950 | 2300 | 2000 | 4 | 128 | |||
| 3 Tiers | 2150 | 2300 | 1600 | 5 | 120 | |||
| 4Tiers | 2150 | 2300 | 2000 | 5 | 160 | |||
| 3Tiers | 2150 | 2360 | 1600 | 5 | 120 | |||
| 4 Tiers | 2150 | 2360 | 2000 | 5 | 160 | |||
| 3 Tiers | 1720 | 2360 | 1600 | 4 | 96 | |||
| 4 Tiers | 1720 | 2360 | 2000 | 4 | 128 | |||
| H Frame Batter Chicken Poultry Layer Cage | ||||||||
| Model | Length(mm) | Width(mm) | Heigh(mm) | Cells Qty | Birds Qty/Set | |||
| 3 Tiers | 1950 | 1200 | 2140 | 4 | 144 | |||
| 4 Tiers | 1800 | 1200 | 2790 | 4 | 192 | |||
| 5 Tiers | 1800 | 1200 | 3440 | 4 | 240 | |||
| 6 Tiers | 1800 | 1200 | 4090 | 4 | 288 | |||
| 8 Tiers | 1800 | 1200 | 5390 | 4 | 384 | |||
| 3 Tiers | 650 | 1250 | 2220 | 1 | 54 | |||
| 4 Tiers | 650 | 1250 | 2870 | 1 | 72 | |||
| 5 Tiers | 650 | 1250 | 3520 | 1 | 90 | |||
| 6 Tiers | 650 | 1250 | 4170 | 1 | 108 | |||
| 8 Tiers | 650 | 1250 | 5470 | 1 | 144 | |||
| Full Automatic Poultry Farm Equipment: Poultry Chicken Battery Layer Cage Body, Automatic Drinking, Automatic Poultry Feed Conveying And Dispensing System, Automatic Egg Collecting, Automatic Manure Faces Cleaning, Ventilation System, Lighting System, Environmental Controller | ||||||||
Laying Hens Battery Poultry Chicken Cage Advantages
1. Human cost reduction of laying hens battery poultry chicken cage: full automatic of feeding,drinking,manure removal and envrionmental control,thus greatly reducing workers's labor intensity and saving labor cost.
2. Advanced equipment: battery cage meshes use advanced hot-dip galvanized technology, which are resistant to corrosion, have long service life, are sturdy and are not easily rusted; poultry cages are the preferred equipment for industrial and intensive farming.
3. Investment saving: Poultry chicken cages have high rearing density and high intensification degree and save land at the same farming scale.
4. Medicine cost reduction: H shaped structure battery cages use totally enclosed reating mode,thereby realizing separation of people from chickens,greatly improving the environment of chicken house and reducing the invasion of exotic diseases and mortality
5. The distance between adjacent leg is 650mm,such cages have larger bearing capacity and the space of cage is larger.
