H Type Broiler Cage With Poultry Drinking System
Basic Properties
Place of Origin:
China
Brand Name:
Silver star
Certification:
ISO9001,SGS
Model Number:
H3L90/H4L120
Trading Properties
Minimum Order Quantity:
50 sets
Price:
108-135$/ set
Standard Packaging:
FCL: Standard exporting packaging type; LCL: In wooden cage packaging
Delivery Time:
10-20 days
Payment Terms:
T/T, Western Union
Supply Ability:
2000 sets/week
Product Summary
H Type Broiler Cage With Poultry Drinking System Newest design broiler chicken cage with poultry drinking system The newly designed broiler cage system is a kind of broiler cage with automatic feeding, automatic drinking water, automatic manure cleaning, One side for feeding, another side for ...
Product Details
Highlight:
4tiers H Type Broiler Cage
,Automatic Drinking Poultry Broiler Cage
,Q235 Poultry Broiler Cage
Product Name:
Poultry Drinking System
Color:
Silver
Material:
Hot Galvanized Steel Wire Mesh
Size:
100*150*49cm
Capacity:
30 Chicks/cell
Lifespan:
More Than 20 Years
Model:
H Type Broiler Chicken Cage
Automatic:
Yes
Use:
Chicken Farm
Keywords:
Poultry Drinking System
Product Description

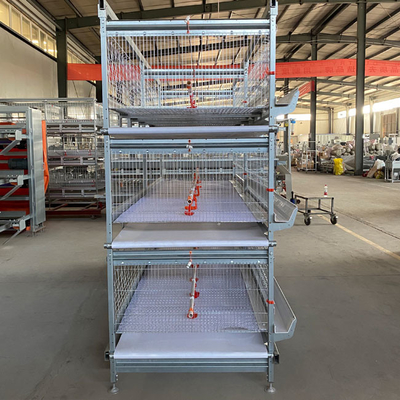

H Type Broiler Cage With Poultry Drinking System
Newest design broiler chicken cage with poultry drinking system
The newly designed broiler cage system is a kind of broiler cage with automatic feeding, automatic drinking water, automatic manure cleaning, One side for feeding, another side for catching chickens with big door, it's very convenient to catch chickens out, and the distance outside the column is 1m, more stronger and more longer use.
Full automatic system of broiler chicken cage:
1: H type battery pullet/broiler cage
2: 3tiers, 4tiers
3: Q235 double hot galvanized anti-corrosion
4: Q235 national standard double hot galvanized bridge steel cage,hot galvanized steel feed trough/ pcv feed trough,ball type automatic water equipment ,white PVC pipe ,3MM U type galvanized steel shelves,closed-end pressure-reducer;Al-Zn material feeding system,AL-Zn material manure cleaning system,ventilation system,lighting system,environment controlling system and so on.
Accessories of broiler chicken cage :
1). The new white PVC material trough, compression, heat, deformation, not broken. Life span 15 years more. 100kg load-bearing.
2). 3MM U-type galvanized steel frame leg: National standard 3MM thick steel plate, U shape design.
350kg load-bearing. With double-DIP galvanizing, life span 15 years more.

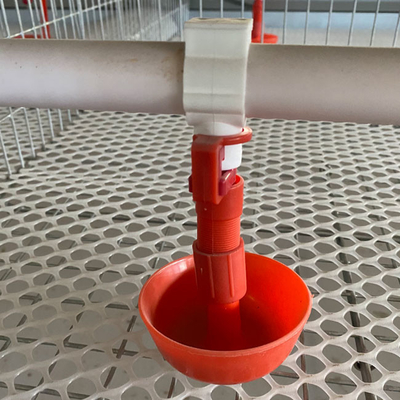

3). Automatic water nipple drinker: 360-degree rotating design, ball type or spring type. Stainless steel and plastic.
4). White PVC water pipe: New PVC material, deformation, high temperature, difficult to damage. Impurities in the water will not produce a chemical reaction, thus ensuring the chickens can drink clean and healthy water. Useful life of 15 years more.
5). Regulator: Fully enclosed design, voltage regulator and with filter.
Broiler chicken cage specification :
|
Tier
|
Cell size
|
Whole size
|
Capacity/set
|
Average area/bird
|
|
3-tiers
|
100*150*49 cm
|
100*150*225 cm
|
90 birds(2-2.5 kgs)
|
500 cm2
|
|
4-tiers
|
100*150*49 cm
|
100*150*290 cm
|
120 birds(2-2.5kgs)
|
500 cm2
|
