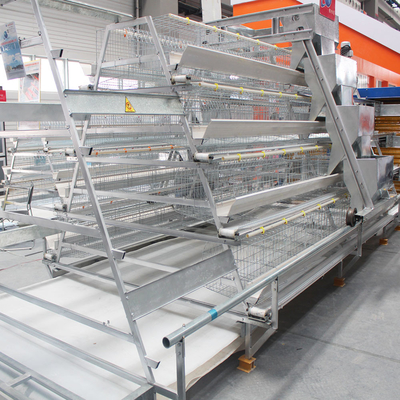

Silver Cold Galvanized Layer Chicken Cage Steel Frame For Farm

Place of Origin China
Brand Name Silver star
Certification ISO9001,SGS
Model Number A3L120/A4L160
Minimum Order Quantity 50 sets
Packaging Details FCL: Standard exporting packaging type; LCL: In wooden cage packaging
Delivery Time 10-20 days
Payment Terms T/T, Western Union
Supply Ability 2000 sets/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Layer Chicken Cage Color Silver
Material Hot/cold Galvanized Steel Wire Mesh Size 43*41*41cm
Capacity 4 Layers/cell Lifespan More Than 20 Years
Model A Type Layer Chicken Cage Automatic Yes
Use Chicken Farm Keywords Layer Chicken Cage
High Light

Silver Cold Galvanized Layer Chicken Cage

,

Farm Galvanized Layer Chicken Cage

,

Steel Frame Layer Chicken Cage

Leave a Message
Product Description

A Type Hot/Cold Galvanized Layer Chicken Cage



Automatic system for A type layer chicken cage:



1): Manure cleaning system
1. Endwise Power drive system:
2. PP manuring Belt:
3. Broadwise and Oblique Manure conveying machine:
Material: Steel Frame
2): Egg collection Machine
1. Endwise Power drive system:
2. Egg collection belt:
3. Advantage: The utility model has the function of preventing eggs from falling off and being broken, reduces the labor and material expenses

3).Automatic feeding system

We have two kinds of feeding system, one is gantry type feeding machine, it can control one house

Another one is ladder type feeding machine, one set control one line.



A type battery layer cage specification:



1). The new white PVC material trough, compression, heat, deformation, not broken. Life span 15 years more. 100kg load-bearing.
2). 3MM U-type galvanized steel frame leg: National standard 3MM thick steel plate, U shape design.
350kg load-bearing. With double-DIP galvanizing, life span 15 years more.
3). Automatic water nipple drinker: 360-degree rotating design, ball type or spring type. Stainless steel and plastic.
4). White PVC water pipe: New PVC material, deformation, high temperature, difficult to damage. Impurities in the water will not produce a chemical reaction, thus ensuring the chickens can drink clean and healthy water. Useful life of 15 years more.
5). Regulator: Fully enclosed design, voltage regulator and with filter.
Other specification for layers, for broiler and baby chicken, pls contact our sales.



Features of  battery chicken cage:



1. silver star Poultry layer cages are manufactured with anti-corrosive galvanized steel and wire cage partitions, providing the hygienic and clean environment for layers.
2. Higher stocking density, greater egg production and cost saving.
3. Easy cleaning and installation, low maintenance and little manure marks.
4. silver star Poultry chicken cages for layers make the inspection of layers easier, because the poultry layer cage provides a good view of the laying chicken.
5. Standard poultry equipment for Poultry layer cages: layer cages, poultry feeding system, poultry drinking system, egg collection system, poultry manure removal system and poultry climate control system.
6. The complete poultry climate control system makes the living environment moderate and provides good ventilation for each tier. The ventilation of chicken layer cage also has the positive impact on the manure drying process.
7. With the full width sliding doors, the layer battery cages offers the access and visibility for laying chickens.



Layer chicken cage specification :



A type 3 tiers layer chicken cage
Model Type Capacity Cage size Cell size Cell capacity Door Avergae area Volume/20ft'container
1 A type 3 tiers 120 birds/set 215*230*150cm 43*41*41(cm) 4birds/cell 5doors 440.75cm2 85 sets/20ft'container
2 A type 3 tiers 96 birds/set 172*230*150cm 43*41*41(cm) 4birds/cell 4doors 451.5cm2 110sets/20ft'container
A type 4 tiers layer chicken cage
1 A type 4 tiers 160 birds/set 215*230*150cm 43*41*41(cm) 4birds/cell 5doors 440.75cm2 64 sets/20ft'container
2 A type 4 tiers 128 birds/set 172*230*150cm 43*41*41(cm) 4birds/cell 4doors 451.5cm2 82sets/20ft'container
Silver Cold Galvanized Layer Chicken Cage Steel Frame For Farm 0Silver Cold Galvanized Layer Chicken Cage Steel Frame For Farm 1Silver Cold Galvanized Layer Chicken Cage Steel Frame For Farm 2
Silver Cold Galvanized Layer Chicken Cage Steel Frame For Farm 3
