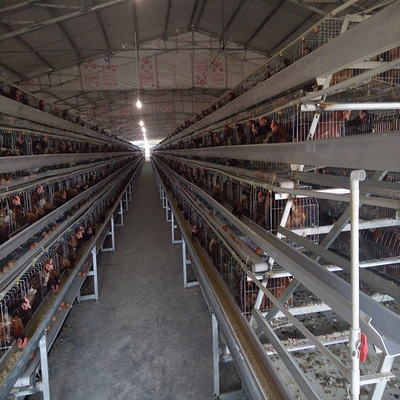

Automatic A Type Layer Chicken Cage Poultry Feed Farm Cage Egg System

Automatic A type poultry feed farm cage layer chicken cage egg system

A type

A tyepe hens cage

Product introduction

Hanging cage 410x410 step cage for laying hens, suitable for laying hens or breeding hens. Each cage net 2150 mm long, 410 mm wide, each cage divided into five doors, each door 430 mm long, 410 mm deep, 410 mm high. Each breed has 4 animals. The chicken has an area of 441 square centimeters. Each cage net feeding capacity of 20.

Characteristics of gantry feeding

In the bottom of the chicken coop 10 to 15 cm from the ground to install a manure removal track, cage-raised chicken manure production scattered on the manure removal belt, in the longitudinal flow of air or the action of the coop air duct, most of the moisture of chicken manure out of the house or significantly reduced, so that the water content of chicken manure greatly reduced. In the process of feces cleaning, the chicken feces removed from the house is granular, easy for subsequent processing, and reduces the ammonia concentration in the chicken house due to the smooth and smooth manure removal belt. Chicken manure from the house to the house outside the manure truck or adjacent organic fertilizer factory pipeline whole process, chicken manure does not fall to the ground, the level of biological safety significantly improved

Characteristics of hopper

Each storage hopper is installed at the bottom of the warping wheel corresponding to the trough position is set up a dry feeding mouth, a storage hopper can at the same time on the bottom of several feeding trough. Feed in the storage hopper at the bottom of the wheel rotation, the feed stranded to the feeding mouth, under the action of gravity into the trough, feeding machine walking, while feeding to the trough and then feed added to the strip trough. Through the drive motor feed hopper in the material delivery to the designated slot, stent with walking round, two of the driving wheel on respectively equipped with sprocket, gear reducer, drive shaft, the shaft, three for the sprocket, install the material shaft sprocket for one-way chain wheel, drive shaft connected with the output of the speed reducer, The sprocket on the driving shaft drives the sprocket on the driving wheel and the feeding shaft through the chain, the feeding shaft passes through the hopper, the feeding shaft is installed in the hopper part of the feeding device, and the hopper is provided with the outlet corresponding to the feed trough of the chicken house.
