SONCAP 3kw Farm Poultry Egg Collection System Conveyor Type 10cm Width
Product Details

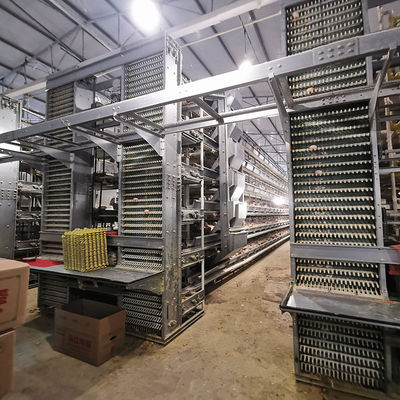

SONCAP Poultry Egg Collection System
,3kw Poultry Egg Collection System
,10cm poultry farm machine
Fully Automated Egg Conveyor Type Collecting Eggs Machine, Labors Saved
Automated Egg Conveyor Type Collecting Eggs Machine Information
Automated egg conveyor type colllecting eggs machine is suitbale for egg laying hens battery chicken cage system. Egg conveyor machine is an important part of the complete set of automatic laying hen breeding chicken equipment, which realizes the automation of egg collection and transmission. It is suitable for large-scaled layer breeding on large farms. The system structure design is simple and reasonable, easy to operate, and effectively saves human resources.
Automated Egg Conveyor Type Collecting Eggs Machine Advantages
1. Automated egg collecting machine is composed of a main frame, egg uploading system, a soft broken egg filtration system, egg collecting belt and drive system, front collection system, and electricity distribution system.
2. Collecting eggs machine is assembled with high-strength hot-dip galvanized steel plate or zinc-aluminum steel sheet, which is designed strictly and has the advantages of large load-bearing capacity and non-deformation of the structure.
3. The composition of the egg conveyor system is driven by a Taiwan geared motor with high transmission efficiency, which achieves low loss, high output, low failure rate, long life, and low noise, reducing the impact of noise on chickens and improving egg production.
4. Soft broken egg filtering system: The transmission mechanism of the soft broken egg filtering system adopts chain and sprocket transmission, and the transmission is stable. This system is mainly installed according to the needs of customers, and the soft eggs are leaked into the soft egg tray below. Prevent the egg mucus that is broken during the transportation of soft eggs from sticking to the upload system and contaminate the finished eggs.
5. The egg collection belt drive system is driven by a hollow worm gear reducer with high transmission efficiency, thus ensuring the smooth operation of the egg conveyor belt. The driving roller is made of high-quality rubber, which increases the friction with the conveyor belt and prevents the conveyor belt from slipping and deviation.
Egg Conveyor Type Collecting Eggs Machine Structure
| Egg Conveyor Collecting Eggs Machine |
Egg collecting system main frame, base, egg collection uploading system, soft broken egg filtration system, egg collection conveyor belt and egg belt drive system, front side egg collecting system , and electricity distribution system |
| Egg collection system | Hot-dip galvanized or zinc-aluminum 1.5mm side plate,speed 4m/min |
| Egg conveyor belt | Belt is used for conveeying the eggs to egg collection machine; Imported from Italy; Material is PP woven belt,thickness 2mm,Width 100mm. |
| Clips for egg collection belt | Material:PVC,4pcs/set,to fix the egg belt firmly |
| Egg guider | Hot galvanized,1mm thickness,configuration with stretching device. |
| Horizontal /Transversal Egg Conveyor | Transfer the eggs from poultry house to egg storgae |
-
