1.25m Hens Poultry Manure Removal System 3-8tiers Automated
Product Details
Hens Poultry Manure Removal System
,8tiers Poultry Manure Removal System
,3tiers automated poultry equipment
Automatic Chicken Cage Use Poultry Manure
Removal System For Laying Hens Farms
Automatic Chicken Cage Use Poultry Manure Removal System Information
Automatic chicken cage use poultry manure removal system contains pp belt manure conveyor and scraper manure remover for laying hens farm and broiler chicken farms.

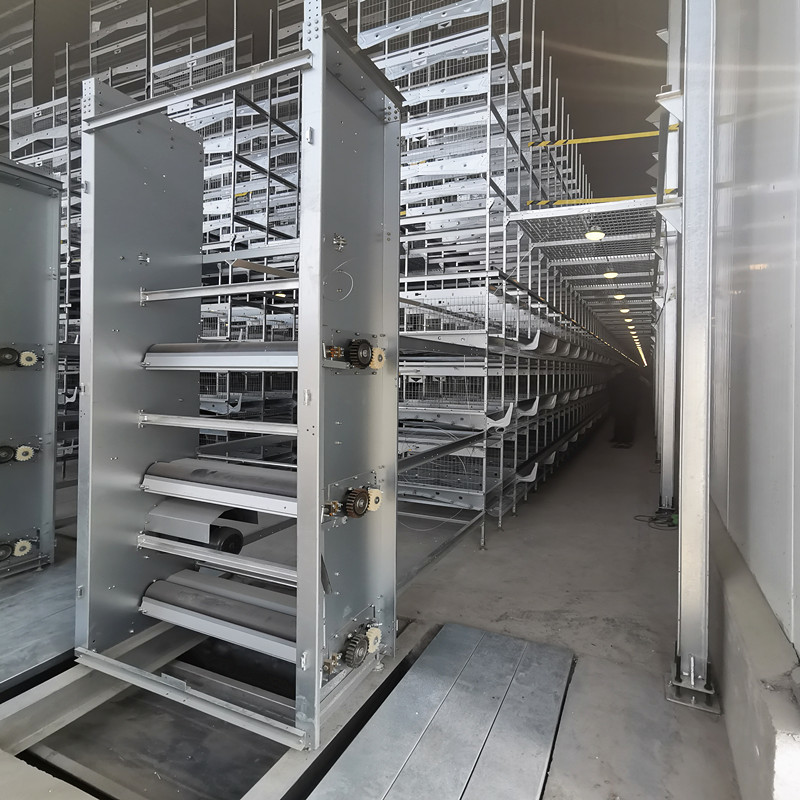

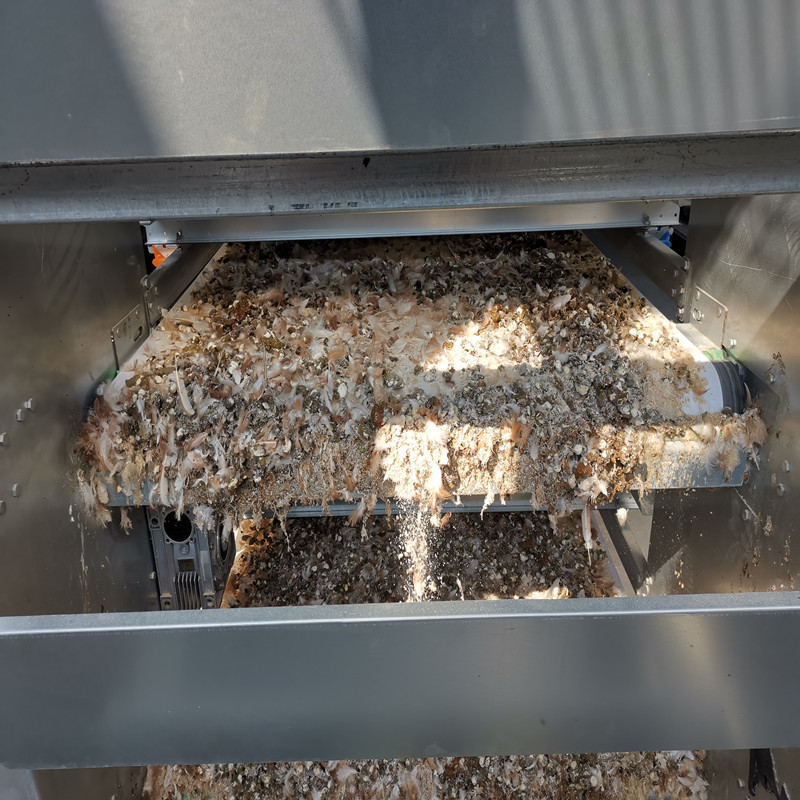

Belt manure conveyor is installed in each layer of H type poultry chicken cage, also named longitudinal belt conveyor, which transfer the manure litter to the end of manure cleaner, then dropped to transversal rubber belt conveyor and transported to outside of house onto truck.
Scraper cleaning machine is installed in the litter pit under the chicken cages, litter pit usually is made into 1.8m or 2.1m width and 30cm depth according to our A type battery chicken cages coops specification produced in our factory.
Automatic Chicken Cage Advantages
Achieve fully automated control, greatly reduce the number of operators, labor intensity, and improve labor productivity;
There is a manure removal belt at the bottom of each layer/floor, which is clean and hygienic to ensure the health of the chicken;
Small land, high space utilization, easy to achieve intensive and large-scale breeding;
The chicken manure is cleaned layers-layers , which is easy to collect and centrally process, high manure utilization rate , and minimal pollution to the environment;
The fully enclosed rearing mode is conducive to preventing the occurrence of infectious diseases and improving the production performance of the chicken flock.
Poultry Battery Chicken Cage Specification
| Layer Chicken Cage | |||||||
| A Type Layer Battery Cage | H Type Layer Battery Cage | ||||||
| Tier/ Floors | Cell Size/ cm | Cage Size/ cm | Birds Qty | Tier/ Floors | Cell Size/ cm | Cage Size/ cm | Birds Qty |
| 3 | 39x38x38 | 195x230x150 | 90 | 3 | 65x62.5x50 | 65x125x222 | 54 |
| 4 | 39x38x38 | 195x230x190 | 120 | 4 | 65x62.5x50 | 65x125x287 | 72 |
| 3 | 48.7x41x41 | 195x230x160 | 96 | 5 | 65x62.5x50 | 65x125x352 | 90 |
| 4 | 48.7x41x41 | 195x230x200 | 128 | 6 | 65x62.5x50 | 65x125x417 | 108 |
| 3 | 39x41x41 | 195x230x160 | 120 | 8 | 65x62.5x50 | 65x125x547 | 144 |
| 4 | 39x41x41 | 195x230x200 | 160 | 3 | 43x60x41 | 183x120x214 | 144 |
| 3 | 43x41x41 | 215x230x160 | 120 | 4 | 43x60x41 | 183x120x279 | 192 |
| 4 | 43x41x41 | 215x230x200 | 160 | 5 | 43x60x41 | 183x120x344 | 240 |
| 3 | 43x45x41 | 215x236x160 | 120 | 6 | 43x60x41 | 183x120x409 | 288 |
| 4 | 43x45x41 | 215x236x200 | 160 | 8 | 43x60x41 | 183x120x539 | 384 |
| Broiler Chicken Cage | |||||||
| A Frame Broiler Chicken Cage | H Frame Broiler Battery Cage | ||||||
| Tier/ Floors | Cell Size/ cm | Cage Size/ cm | Birds Qty | Tier/ Floors | Cell Size/ cm | Cage Size/ cm | Birds Qty |
| 3 | 61x50x44 | 183x236x150 | 108 | 3 | 100x100x44 | 100x100x220 | 60 |
| 4 | 100x100x44 | 100x100x285 | 80 | ||||
| 3 | 100x150x44 | 100x150x220 | 90 | ||||
| 4 | 61x50x44 | 183x236x190 | 144 | 4 | 100x150x44 | 100x150x285 | 120 |
| 3 | 148x175x44 | 148x175x280 | 150 | ||||
| 4 | 148x175x44 | 148x175x360 | 200 | ||||
| Pullet Poultry Chick Cage | |||||||
| A Type Poultry Chick Coop | H Type Poultry Chicks Cage | ||||||
| Tier/ Floors | Cell Size/ cm | Cage Size/ cm | Birds Qty | Tier/ Floors | Cell Size/ cm | Cage Size/ cm | Birds Qty |
| 3 | 61x50x37 | 183x230x130 | 180 | 3 | 85x62.5x44 | 85x125x220 | 102 |
| 4 | 61x50x37 | 183x230x180 | 240 | 4 | 85x62.5x44 | 85x225x285 | 136 |
-
