HDG Automatic Manure Scraper , ISO9001 6mm Poultry Automation Equipment

Place of Origin China
Brand Name Silver Star
Certification ISO9001, SGS
Model Number YXH4L72
Minimum Order Quantity 30 Sets
Price 140-320usd/set
Packaging Details Standard Exporting Packaging Or As Customers' Request
Delivery Time 15-30 working days after advanced payment
Payment Terms T/T, Western Union, D/A, D/P, L/C
Supply Ability 50000sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Manure Removal System PP Poultry Manure Belt Poultry Cage System Cage Type A Or H Frame Of Poultry Cage
Cage Material Hot Galvanizing Laying Hens Cage Manure Cleaning Longitudinal&Transversal Belt Cleaning System
Longitudinal Belt 1.2mm PP Belt Lateral Belt 6mm Rubber Belt, Green Color
Marketing Type New Product 2021 Of Battery Cage Feature Fully Automatic Manure Collecting, Automated Feeding
Local Service Indonesia, Philippines, Thailand, Ecuador, Algeria, Ghana, Kenya, Nigeria, Panama HS Code 84362900
High Light

6mm automatic manure scraper


ISO9001 automatic manure scraper


HDG poultry automation equipment

Leave a Message
Product Description

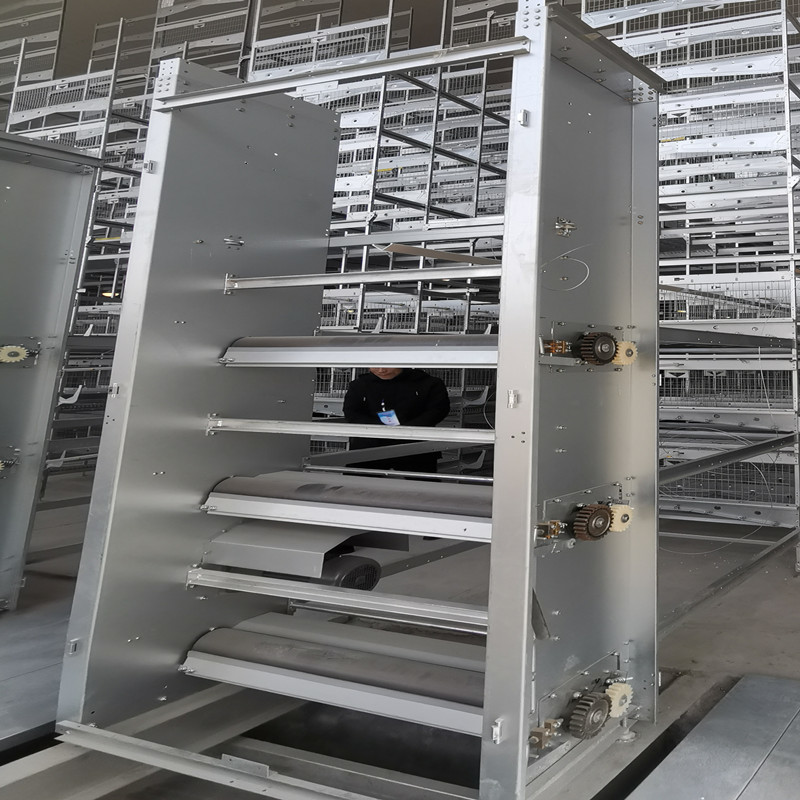

    Manure Removal System PP Poultry Manure Belt Poultry Cage System



Manure Removal PP Manure Belt Poultry Cage System Information


Modern poultry cage is designed into fully automatic feeding, automatic pp manure belt removal, automatic egg collecting.

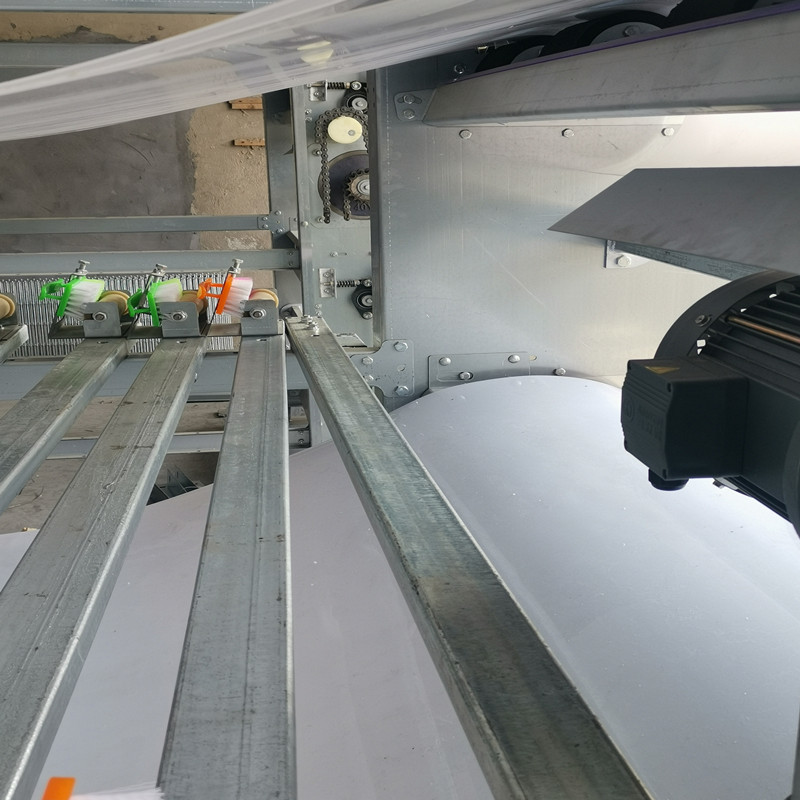

Manure belt is made of white PP product is consisting of front cap rollers stretching and internal scrapping off apparatus as well as the rear scrapping off rollers, pressing balls, external scrapping off apparatus, conveyor drive systems and the electrical reducer engines.

Manure is cleaned and discharged by the Polypropylene (PP) manure belts of 1.2mm thickness. These PP belts are located under every tier and row of the cages and towed by drive reducer engines to clean the manure. Rollers and the scrapers located on each tier and row spills the manure to the discharging manure conveyor at the end of the hen-house and the manure is removed from the hen-house by this discharging manure conveyor.
Lateral manure conveyor: The rubber belt in thickness of 6 mm including the cord cloth running on galvanized pipes at galvanized construction and the front rear rollers, reducer engine. The motor for the manure conveyor is covered by the galvanized steel sheets in case of the strong sunshine, rainy, water etc. And the power can be changed as different conveyor length.



PP Belt Poultry Manure Removal System Advantages


1. The entire manure removal system has high cleanliness, which can effectively reduce the concentration of harmful gases in the house, relatively reduce the ventilation in the house, reduce energy consumption, and extend the service life of the fan.

2. The temperature of the chicken house can also be increased to reduce the energy consumption of the chickens and improve the production performance of the chickens; compared with drying, chicken manure is easier to handle and deep-process, and work efficiency is improved.

3. The cleaning belt is welded with an ultrasonic welding machine, which has certain strength and toughness, no water absorption and no deformation.

4. Each row or layer of poultry cages is equipped with a set of longitudinal manure removal belt, and each chicken house is equipped with horizontal and oblique belt; the longitudinal belt transfer the chicken manure to the horizontal end belt of the chicken house, and then transport it to the outside of the house directly onto the truck. The manure removal power and control system are located at the end of the chicken house for easy operation and maintenance.

5. The belt cleaning method greatly improves the air quality in the chicken house, relatively reduces the occurrence of some diseases, and has high safety.



Poultry Cages System Technical Parameter


Layer Poultry Cage
A Type Layer Poultry Cage H Type Layer Poultry Cage
Tier/ Floors Cell Size/ cm Cage Size/ cm Birds Qty Tier/ Floors Cell Size/ cm Cage Size/ cm Birds Qty
3 39x38x38 195x230x150 90 3 65x62.5x50 65x125x222 54
4 39x38x38 195x230x190 120 4 65x62.5x50 65x125x287 72
3 48.7x41x41 195x230x160 96 5 65x62.5x50 65x125x352 90
4 48.7x41x41 195x230x200 128 6 65x62.5x50 65x125x417 108
3 39x41x41 195x230x160 120 8 65x62.5x50 65x125x547 144
4 39x41x41 195x230x200 160 3 43x60x41 183x120x214 144
3 43x41x41 215x230x160 120 4 43x60x41 183x120x279 192
4 43x41x41 215x230x200 160 5 43x60x41 183x120x344 240
3 43x45x41 215x236x160 120 6 43x60x41 183x120x409 288
4 43x45x41 215x236x200 160 8 43x60x41 183x120x539 384
