2-3rows Poultry Manure Removal System For Livestock Farming SONCAP Listed

Place of Origin China
Brand Name Silver Star
Certification ISO9001:2015, SONCAP
Model Number YXPM5
Minimum Order Quantity 1 Set
Price 600-2400USD/Set
Packaging Details Standard Exporting Packaging Or As Customers' Request
Delivery Time 7-15 working days after advanced payment
Payment Terms T/T, Western Union, D/A, D/P, L/C
Supply Ability 80000sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Mechanical Manure Cleaning Machine Automated Livestock Poultry Equipment Litter Removal Way Scraper Manure Removal, Belt Manure Cleaning
Marketing Type New Product 2021 Scraper Material Hot Dipped Galvanized Or Stainless Steel Plate
Belt Removal Machine Zinc-Aluminum/hot Galvanized Steel Scraper Rope Stainless Wire Or Pp Rope As Request
Use For Multi-layer Poultry Chicken Cage Coop Manure Belt Logitudinal 1.2mm Pp Belt, Transversal 6mm Rubber Belt
Local Service Indonesia, Philippines, Thailand, Ecuador, Algeria, Ghana, Kenya, Nigeria, Panama HS Code 84362900
High Light

2rows Poultry Manure Removal System


3rows Poultry Manure Removal System


SONCAP livestock farming equipment

Leave a Message
Product Description

    Mechanical Manure Cleaning Collecting Machine Automated Livestock Poultry Equipment



Mechanical Manure Cleaning Collecting Machine Introduction


Mechanical manure cleaning or collecting machine for automated livestock poultry equipment chicken cages include scraper manure removal and pp belt manure removal equipments.

scraper type manure collection machines is designed for A frame cage systems which has manure pits under the cages, the waste dropping from the cages into manure pits, and the scraper can collect the manure from the manure pits to the outside of  chicken house. Each machine is used for 2 to 3 rows of chicken cages manure pit. The width of the manure scraper is designed according to the customers’ manure pit size.

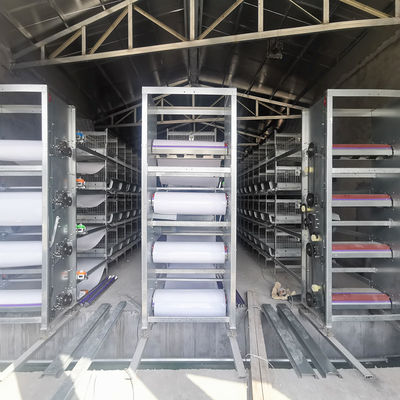

Chicken cage conveyor belt type manure cleaner is a kind of automatic manure removal equipment in poultry farms. The type of manure cleaner is suitable for H type chicken cage poultry farms. It has the advantages of clean manure removal and high efficiency.



Manure Collecting Machine Installation Precautions


1. It is required that the chicken house must be hardened, the ground is flat, there is no convexity and concave place, the slope control should not exceed 2 degrees up and down. The excrement should be 5-10 degrees lower on the other side. So that the water can be drained smoothly.

2. Place the chicken cages straight and adjust the foot adjuster so that the height deviation between the two cages should not exceed 0.5 mm, and the distance between the legs should not exceed 0.5 mm.

3. Main engine should be firmly fixed, also the head and tailstock should be firmly fixed to the ground without loosening.

4. Install manure belt or scraper, and check whether the manure belt and the manure baffle are suitable.

5. The electrician installs the wiring and control line, and finds the position of the travel switch, and fixes it firmly;

6. The controller must contain a leakage protection device;

7. The test running is performed by a person on the control panel in a jog mode, and multiple persons should cooperate to ensure that there are no scratches, jams, deflection, etc. in the equipment. If problems are found, find out the reasons and solve them in time. Start and run when it is confirmed that there is no error;

8. If the operation is stable, the manure removal is uniform and there is no too much noise (less than 40 decibels). There is not much jitter. That is qualified.



Mechanical Manure Collecting Machine Characteristics


Belt Type Manure Collecting Machine

The manure conveyor belt for manure collector is a thickened PP material, which has strong corrosion resistance, strong environmental adaptability and long life. Moreover, the wear rate of the belt is very low when clean manure, and it can be used for ten to twenty years, which can carry heavy objects, generally one square can carry the limit of 5000N force.


The conveyor belt manure cleaner motor produced by our company uses a cycloid reducer, and the multi-layers can be equipped with a straight gear reducer.


High-carbon steel is used for the scraping mouth, and some use high-thickness galvanized steel, which can withstand objects harder than itself without deformation, and the scraper is well-made.


Scraper Manure Collecting Machine
1 It can realize unmanned management, automatic timing cleaning, time can be set arbitrarily
2 manual temporary cleaning, simple and quick operation, automatic manual arbitrary conversion
3 multi-level power transmission, increased friction, strong power

automatic retractable scraper, board position Adjustable, low friction, clean manure
