SGS 380V 50Hz Automatic Poultry Manure Removal System With Belt Conveyor

Place of Origin China
Brand Name Silver Star
Certification ISO9001:2015, SGS
Model Number YXPM5
Minimum Order Quantity 1 Set
Price 1000-2500USD/Set
Packaging Details Standard Exporting Packaging Or As Customers' Request
Delivery Time 7-15 working days after advanced payment
Payment Terms T/T, Western Union, D/A, D/P, L/C
Supply Ability 50000sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Automatic Feces Clean Poultry Manure Removal System With Belt Conveyor Machine Material Zinc-Aluminum Plate, Hot Dipped Glavanized Sheet
Driving Motor 1.5KW, 380V, 3Phase, 50Hz Or Be Customized Motor Brand Taiwan Wanxin
Working Method Belt Conveyor Cleaning Machine Bracket For Belt Hot Dipped Galvanized, 1.5mm Thickness
Usage Animal Husbandry Livestock Equipment Other Names Poultry Litter Cleaning/Removal Equipment
Local Service Indonesia, Philippines, Thailand, Ecuador, Algeria, Ghana, Kenya, Nigeria, Panama HS Code 84362900
High Light

380V Poultry Manure Removal System


50Hz Poultry Manure Removal System


SGS automatic manure removal system

Leave a Message
Product Description

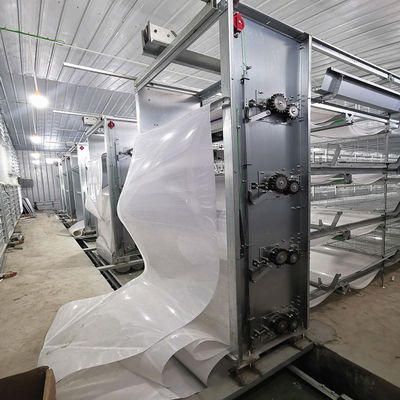

      Automatic Feces Clean Poultry Manure Removal System With Belt Conveyor



Automatic Poultry Manure Removal System Description


Automatic poultry manure removal system or feces removal system with belt conveyor is designed for battery chicken cages H and A frame.

Each layer of battery chicken cage is equipped with a manure cleaning belt, birds do not contact with manure, and chicken feces are removed regularly. Lower ammonia and hydrogen sulfide and other harmful gases can improve the breeding environment of the chicken house, reduce the occurrence of poultry diseases, and reduce the cost of medicine, increase the efficiency of breeding.



Working Principle For Poultry Manure Removal System


The belt manure cleaning machine is equipped with a manure bearing plate on each layer of chicken cages. When the machine starts, the motor and accelerator move the active rollers of each layer through the chain to work. Friction is generated from the lower part, and the moving manure-carrying cage group moves in the length direction to transport the chicken manure to one end, which is scraped off by the manure scraper set at the end, and then the manure removal work is finished.



Features For Automaric Feces Poultry Manure Removal System With Belt Conveyor


Poultry Manure Removal System With Belt Conveyor

The manure conveyor belt for manure cleaner is a thickened PP material, which has strong corrosion resistance, strong environmental adaptability and long life. Moreover, the wear rate of the belt is very low when clean manure, and it can be used for ten to twenty years, which can carry heavy objects, generally one square can carry the limit of 5000N force.


The conveyor belt manure cleaner motor produced by our company uses a cycloid reducer, and the multi-layers can be equipped with a straight gear reducer.


High-carbon steel is used for the scraping mouth, and some use high-thickness galvanized steel, which can withstand objects harder than itself without deformation, and the scraper is well-made.


High working efficiency, chicken manure can be automatically transfered out timely, avoiding overnight chicken manure infection, preventing the occurrence of infectious diseases, automatic loading, and the height of chicken manure can be automatically adjusted according to the situation.



Installation Precautions


1. It is required that the chicken house must be hardened, the ground is flat, there is no convexity and concave place, the slope control should not exceed 2 degrees up and down. The excrement should be 5-10 degrees lower on the other side. So that the water can be drained smoothly.

2. Place the cages straight and adjust the foot adjuster so that the height deviation between the two cages should not exceed 0.5 mm, and the distance between the legs should not exceed 0.5 mm.

3. Main engine should be firmly fixed, also the head and tailstock should be firmly fixed to the ground without loosening.

4. Install manure belt or scraper, and check whether the manure belt and the manure baffle are suitable.

5. The electrician installs the wiring and control line, and finds the position of the travel switch, and fixes it firmly;

6. The controller must contain a leakage protection device;

7. The test running is performed by a person on the control panel in a jog mode, and multiple persons should cooperate to ensure that there are no scratches, jams, deflection, etc. in the equipment. If problems are found, find out the reasons and solve them in time. Start and run when it is confirmed that there is no error;

8. If the operation is stable, the manure removal is uniform and there is no too much noise (less than 40 decibels). There is not much jitter. That is qualified.
