Chicken Farm Q235 Automatic Poultry Feeding System dia3-6mm Wire With Dispensing

Place of Origin China
Brand Name Silver Star
Certification ISO9001, SONCAP
Model Number YXHF3, YXH6L108
Minimum Order Quantity 50Set
Price 150-320USD/ Set
Packaging Details Standard exporting packaging way
Delivery Time in 35 working days after deposit
Payment Terms T/T, Western Union, L/C, D/A, MoneyGram, D/P
Supply Ability 20000sets/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Battery Poultry Chicken Cage With Automatic Feed Conveying And Dispensing System Marketing Type New Product 2021 Of Layer Cage
Wire Mesh Material Q235 Low Carbon Steel Wire Diameter 3--6mm Wire Of Chicken Cage
Cage Door Sliding Door Of H Frame Layer Cage Feature Automatic Feed Conveying, Dispensing System
Apply For Animal Husbandry Equipment Laying Hens Farm Wire Processing Hot Dipped Galvanized
HS Code 8462900 Local Service Ecuador, Kenya, Algeria, Indonesia, Panama, Nigeria, Ghana, Philippines, Uzbekistan, Bangladesh
High Light

3mm Wire Automatic Poultry Feeding System


6mm Wire Automatic Poultry Feeding System


Q235 chicken farm feeding system

Leave a Message
Product Description

 Battery Poultry Chicken Cage With Automatic Feed Conveying And Dispensing System



Battery Poultry Chicken Cage Description


Silver Star's european battery poultry layer chicken cage has a larger cell size: 650mm length, 625mm depth and 440mm height.

650mm layers-layers height with top wire mesh has a better ventilation, 650x625mm segment size is easy to work and more stable,

bottom wire mesh smooth and is free of hurts.

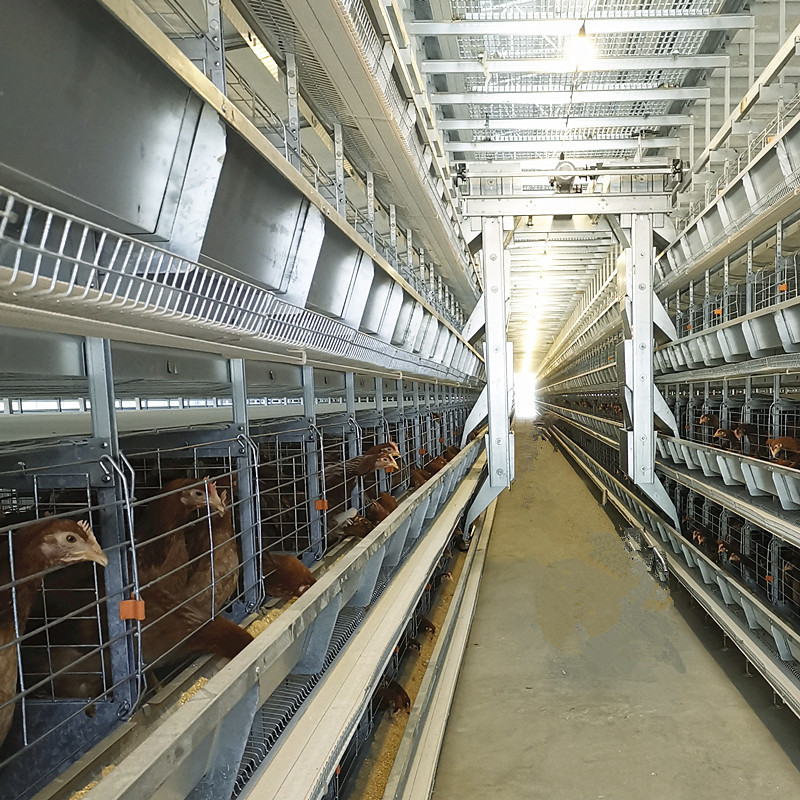

Automatic Poultry Feeding System Working Methods


Hopper trolley feeding carts method ismore and more popular for the chicken farms, which is to firstly transport the feed from the silo outside of poultry house to the front hopper of each line of chicken cage through the spring auger, and then evenly convey and dispense the feed to the feed trough of each layer cage through the moving carts. The feed capacity supply in the feed trough can be adjusted by the leveler.


Battery Poultry Chicken Layer Cage Specification


A  Frame Battery Poultry Chicken Layer Cage
Model Length(mm) Width(mm) Heigh(mm) Cells Qty Birds Qty/Set
3 Tiers 1950 2300 1500 5 90
4 Tiers 1950 2300 1900 5 120
3 Tiers 1950 2300 1600 4 96
4 Tiers 1950 2300 2000 4 128
3 Tiers 2150 2300 1600 5 120
4Tiers 2150 2300 2000 5 160
3Tiers 2150 2360 1600 5 120
4 Tiers 2150 2360 2000 5 160
3 Tiers 1720 2360 1600 4 96
4 Tiers 1720 2360 2000 4 128
H Frame Batter Chicken Poultry Layer Cage
Model Length(mm) Width(mm) Heigh(mm) Cells Qty Birds Qty/Set
3 Tiers 1950 1200 2140 4 144
4 Tiers 1800 1200 2790 4 192
5 Tiers 1800 1200 3440 4 240
6 Tiers 1800 1200 4090 4 288
8 Tiers 1800 1200 5390 4 384
3 Tiers 650 1250 2220 1 54
4 Tiers 650 1250 2870 1 72
5 Tiers 650 1250 3520 1 90
6 Tiers 650 1250 4170 1 108
8 Tiers 650 1250 5470 1 144
Full Automatic Poultry Farm Equipment: Poultry Chicken Battery Layer Cage Body, Automatic Drinking, Automatic Poultry Feed Conveying And Dispensing System, Automatic Egg Collecting, Automatic Manure Faces Cleaning, Ventilation System, Lighting System, Environmental Controller


Laying Hens Battery Poultry Chicken Cage Advantages


1. Human cost reduction of laying hens battery poultry chicken cage: full automatic of feeding,drinking,manure removal and envrionmental control,thus greatly reducing workers's labor intensity and saving labor cost.
2. Advanced equipment: battery cage meshes use advanced hot-dip galvanized technology, which are resistant to corrosion, have long service life, are sturdy and are not easily rusted; poultry cages are the preferred equipment for industrial and intensive farming.
3. Investment saving: Poultry chicken cages have high rearing density and high intensification degree and save land at the same farming scale.
4. Medicine cost reduction: H shaped structure battery cages use totally enclosed reating mode,thereby realizing separation of people from chickens,greatly improving the environment of chicken house and reducing the invasion of exotic diseases and mortality
5. The distance between adjacent leg is 650mm,such cages have larger bearing capacity and the space of cage is larger.
