8.67m/Min Automatic Chicken Water Nipple Drinker Feeders System 1.2mm HDG Steel material
Product Details
1.2mm water nipple drinker chicken feeder
,8.67m/Min chicken feeding system
,HDG Steel chicken feeding system
Egg Chicken Farm Poultry Cage Use Automatic Feeding Machine, Stable

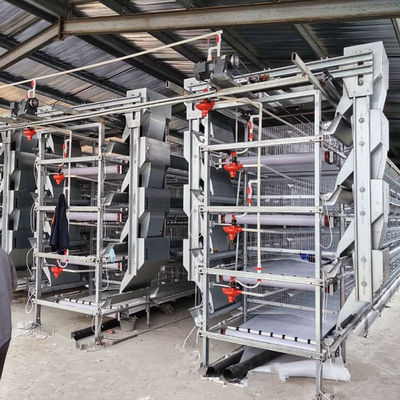

Information For Egg Chicken Farm Poultry Cage Use Automatic Feeding Machine
Egg chicken farm poultry cage use automatic feeding machine adopts feeding carts with 1.0mm thickness hot dipped galvanized or zinc-aluminum material. This way is to firstly transport the feed from the silo outside of poultry house to the front hopper of each line of chicken cage through the spring auger, and then evenly transport the feed to the feed trough of each layer cage through the moving carts. The feed capacity supply in the feed trough can be adjusted by the leveler.
Automatic Feeding Machine Techinical Parameter
1. Feed Hopper: Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel
2. Traction Device: Power of motor:0.75kw,tow rope: pp rope with 14mm, speed: 8.67m/minute.
3. Track of Trolley: Hot-dip galvanized steel with 48mm*2.75mm.
4. Head and end frame: Hot-dip galvanized steel with 40mm*60mm*3mm.
5. Operation: Each row feeding machine can be operated seperately.
6. Auger Transverse: The feeding trolley carts is conneted with the silo by the transverse feeding auger.
7. Application: Suit for both A and H frame egg chicken farm poultry cage, broiler chicken farm poultry cage, pullet cages etc.

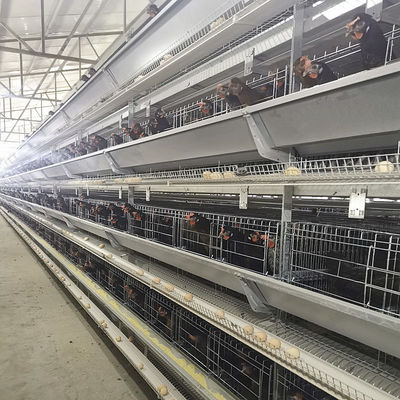

Egg Chicken Farm Poultry Cage Dimension
| A Shaped Structure Egg Chicken Farm Poultry Cage | |||||
| Model | Length(mm) | Width(mm) | Heigh(mm) | Door Qty | Birds Qty/Set |
| 3 Tiers | 1950 | 2300 | 1500 | 5 | 90 |
| 4 Tiers | 1950 | 2300 | 1900 | 5 | 120 |
| 3 Tiers | 1950 | 2300 | 1600 | 4 | 96 |
| 4 Tiers | 1950 | 2300 | 2000 | 4 | 128 |
| 3 Tiers | 2150 | 2300 | 1600 | 5 | 120 |
| 4Tiers | 2150 | 2300 | 2000 | 5 | 160 |
| 3Tiers | 2150 | 2360 | 1600 | 5 | 120 |
| 4 Tiers | 2150 | 2360 | 2000 | 5 | 160 |
| 3 Tiers | 1720 | 2360 | 1600 | 4 | 96 |
| 4 Tiers | 1720 | 2360 | 2000 | 4 | 128 |
| H Shaped Structure Egg Chicken Farm Poultry Cage | |||||
| Model | Length(mm) | Width(mm) | Heigh(mm) | Door Qty | Birds Qty/Set |
| 3 Tiers | 1950 | 2140 | 4 | 144 | |
| 4 Tiers | 1800 | 1200 | 2790 | 4 | 192 |
| 5 Tiers | 1800 | 1200 | 3440 | 4 | 240 |
| 6 Tiers | 1800 | 1200 | 4090 | 4 | 288 |
| 8 Tiers | 1800 | 1200 | 5390 | 4 | 384 |
| 3 Tiers | 650 | 1250 | 2220 | 1 | 54 |
| 4 Tiers | 650 | 1250 | 2870 | 1 | 72 |
| 5 Tiers | 650 | 1250 | 3520 | 1 | 90 |
| 6 Tiers | 650 | 1250 | 4170 | 1 | 108 |
| 8 Tiers | 650 | 1250 | 5470 | 1 | 144 |
Layer Egg Chicken Poultry Farm Cage Characterisitics
1. Egg chicken farm poultry layer cage is suitable for all kinds of poultry chicken houses (open, semi-open, closed);
2. Laying hens chicken farm cage is made of Q235 national bridge steel. The U-shaped steel cage stand is strong enough to support the layer chicken cage.
3. High-density multi-layer chicken battery cages reduce land usage;
4. Poultry farming layer chicken cages can save feed, water and reduce poultry manure pollution.
5. Poultry hens cage adopts the latest hot galvanizing after welding treatment. Compared with the traditional metal electroplating process, the hot dip galvanized process is more environmentally friendly and corrosion resistant; the smooth-looking coating is self-cleaning, which can greatly reduce the infection rate of chicken diseases.
-
