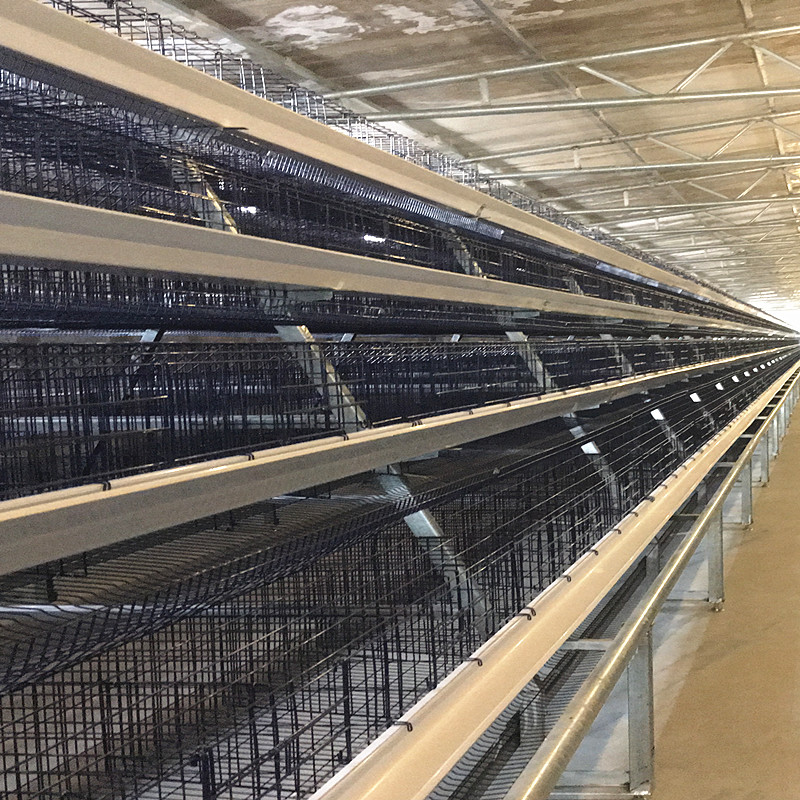

160 Birds Q235 Cage Automatic Poultry Feeding System 4 Layers
Product Details

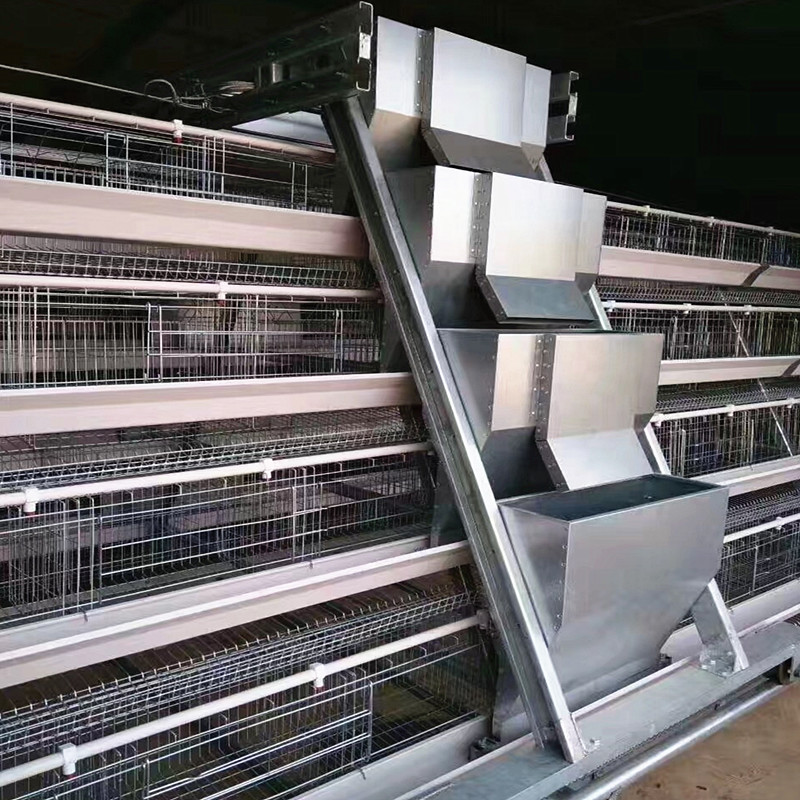

160 Birds Automatic Poultry Feeding System
,4Layers Automatic Poultry Feeding System
,q235 Cage galvanized chicken feeder
4 Layers 160 Birds Battery Chicken Cage With Pvc Or Galvanized Feeders
Layer Battery Chicken Cage Components
Layer battery chicken cage contains cage wire mesh, cage stand, feed through, feeder connector, water tank or water pressure regulator, filter, water pipe, connectors, nipple drinkers etc.
| 1. Cage Wire Mesh | Top mesh, bottom mesh, back mesh,partition mesh,cage door; Material: Q235 Surface treatment: double cold galvanized or hot dipped galvanized |
|
2. Cage Stand |
Life service: more than 20 years, U shaped hot galvanized steel |
|
3. Feed Trough |
PVC feeders or hot galvanized feeders |
|
4. Feeder Connector |
Use for connecting two pcs of feed troughs, and cover the end of feeders |
|
5. Water Pressure Regulator |
Adjust the water pressure to ensure that every chicken can drink water easily. |
|
6. Water Tank |
Adopt new pure native PE raw material, strong toughness and resistance to fall off, anti-aging. |
|
7. Water Pipe |
Use for connecting water tank or water pressure regulator supply water to nipple drinker for chicken drinking. Full new PVC material, high temperature resistance, not easy to bend |
|
8. "T","L","I"Connector |
"I"connector connect two pipes; "T" connect three pipes; "L" connector for water pipe turning. |
|
9. Filter |
Assembled at the inlet end of the water piper to ensure that chicken can drink the clean water. |
|
10. Nipple Drinker |
Material: stainless steel ball and ABS plastic; Long life span, no leak. |
|
11. Fittings and tools |
Screw: use for assembling the frame and cages;
|
Layers Battery Chicken Cage Size
| Layers Battery Chicken Cage | |||||||
| Type A Layers Battery Chicken Cage | Type H Layers Battery Chicken Cage | ||||||
| Tiers/Layers | Size/Cell (cm) | Cage Size/ Set(cm) | Birds Qty | Tiers/Layers | Size/Cell (cm) | Cage Size/ Set(cm) | Birds Qty |
| 3 Tiers | 39x38x38 | 195x230x150 | 90 | 3 Layers | 65x62.5x50 | 65x125x222 | 54 |
| 4 Tiers | 39x38x38 | 195x230x190 | 120 | 4 Layer | 65x62.5x50 | 65x125x287 | 72 |
| 3 Tiers | 48.7x41x41 | 195x230x160 | 96 | 5 Layers | 65x62.5x50 | 65x125x352 | 90 |
| 4 Tiers | 48.7x41x41 | 195x230x200 | 128 | 6 Layers | 65x62.5x50 | 65x125x417 | 108 |
| 3 Tiers | 39x41x41 | 195x230x160 | 120 | 8 Layers | 65x62.5x50 | 65x125x547 | 144 |
| 4 Tiers | 39x41x41 | 195x230x200 | 160 | 3 Layers | 43x60x41 | 183x120x214 | 144 |
| 3 Tiers | 43x41x41 | 215x230x160 | 120 | 4 Layers | 43x60x41 | 183x120x279 | 192 |
| 4 Tiers | 43x41x41 | 215x230x200 | 160 | 5 Layers | 43x60x41 | 183x120x344 | 240 |
| 3 Tiers | 43x45x41 | 215x236x160 | 120 | 6 Layers | 43x60x41 | 183x120x409 | 288 |
| 4 Tiers | 43x45x41 | 215x236x200 | 160 | 8 Layers | 43x60x41 | 183x120x539 | 384 |
Layers Battery Chicken Cage Characterisitics
1. Poultry farm layers battery chicken cage is suitable for all kinds of chicken houses (open, semi-open, closed);
2. Egg layer poultry farm cage is made of Q235 national bridge steel. The U-shaped steel cage stand is strong enough to support the layer chicken cage.
3. High-density multi-layer chicken cages reduce land usage;
4. Poultry farming battery chicken cages can save feed, water and reduce poultry manure pollution.
5. Poultry hens cage adopts the latest hot galvanizing after welding treatment. Compared with the traditional metal electroplating process, the hot dip galvanized process is more environmentally friendly and corrosion resistant; the smooth-looking coating is self-cleaning, which can greatly reduce the infection rate of chicken diseases.
-
