3m/Set Water Nipple Drinker Chicken Feeder , ISO9001 4holes Automatic Broiler Feeder

Place of Origin China
Brand Name Silver Star
Certification ISO9001, SONCAP
Model Number YXHF3
Minimum Order Quantity 1Set
Price 1300-3500USD/ Set
Packaging Details Standard exporting packaging way
Delivery Time in10 working days after deposit
Payment Terms T/T, Western Union, L/C, D/A, D/P
Supply Ability 600sets/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Other Name Automatic Pan Feeding System For Broiler Floor Raising Equipment Main Feed Line Silo, Or Hopper
Feed Pan Pure Plastic Material Delivery Pipe 3m/set With 4holes, 45mm Diamter
Feed Auger Imported From South Africa Winch Cranking Bar 90cm Length, Cast Iron
Anti-perching Stainless Steel Rope, Insulator, Spring Marketing Type New Product 2021
HS Code 8462900 Local Service Ecuador, Kenya, Algeria, Indonesia, Panama, Nigeria, Ghana, Philippines, Uzbekistan, Bangladesh
High Light

3m/set automatic broiler feeder


ISO9001 water nipple drinker chicken feeder


4holes water nipple drinker chicken feeder

Leave a Message
Product Description

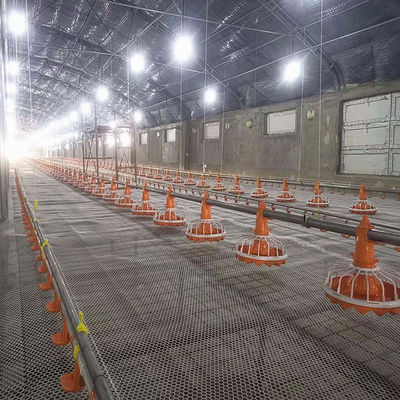

    Automatic Pan Feeding System For Broiler Floor Raising Equipment
Automatic Poultry Pan Feeding System Introduction
Broiler floor raising equipment adopts automatic pan feeding system, feed conveying and dispensing system uses PE pipe and auger imported from South Africa. The feed conveying speed is fast. It is easy to maintain and assemble.
Automatic Pan Feeding System Techinical Parameter

1. Vice Hopper


Size: 60x60cm, 60kgs capacity, 1.0mm thickness hot dip galvanized sheet

2. Delivery Pipe


Feed pipe:

Diameter of feed pipe:Φ45mm

Material:hot-dip galvanized sheet pipe with the zinc coating amount—more than 275m2.

Helical spring auger:

imported from South Africa, feeding ability:450Kg/h


3. Feeding Pan


16 grid

4 feed pans/3m

Feed pan capacity:

50-55 broilers/pan

4. Control feed pan(with sensor)


imported from Germany

time delay range: 0-2hours

The sensor is usually installed at the end of each feeding line which controls motor on and off to achieve feed delivery automatically. The motor will start working and convey feed when sensor doesn't touch feed, the motor will stop conveying feed when sensor touchs feed.

5. Driving motor


Taiwan Wanxin brand

Power: 0.75Kw/1.1Kw/1.5Kw,

Voltage:380V/220V/others, three-phase/single-phase

Frequency:50Hz, AC current

6. Augers diameter:36mm, high carbon manganese steel
7. Feeding Line Boosting Pulley Dia: 9cm ;cast iron material
8. Anti-perching system It prevents chickens from staying on the ground for too long.
9. Lifting Winch MRS3000, cast iron

Automatic Pan Feeding Ssytem Equipment Advantages

1. Made of high-resistant injected plastic—PP;
2. Six-position regulator that enables the correct amount of feed to be delivered according to the age of chickens, just need to catch two ears in the inner and pull them out adjust up and down;

3. Easy assembly and disassembly system for cleaning the pan;
4. A flange is incorporated to keep the pan suspended for handling;
5. The pan bottom can be disassembled on the ground, which can be used for day-old chicks;
6. V-shape plate design can reduce feed storage on bottom, so birds can always eat fresh feed, which also prevents birds staying on the plate for a long time;

7. The edge of pan plate tilt towards the center, which avoids waste of feed, the smooth edge prevents birds craws hurting and make sure safe and comfort feeding;

8. The pan features fins and lips to prevent the feed from falling into the chicken's bedding and being wasted.
