0.75kw H Type 4 Tiers HDG Automatic Poultry Feeding System For Chicken Layer Cage

Place of Origin China
Brand Name Silver Star
Certification ISO9001, SONCAP
Model Number YXHF3
Minimum Order Quantity 1Set
Price 1400-2500USD/ Set
Packaging Details Standard exporting packaging way
Delivery Time in10 working days after deposit
Payment Terms T/T, Western Union, L/C, D/A, D/P
Supply Ability 600sets/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name H Type 4 Tiers Automatic Poultry Feeding System For Chicken Farm Layer Cage Feeding Material Hot Galvanized Steel
Power Of Motor 0.75kw Apply For Chicken Farm Layer Cage
Feature Working Smoothly, Homogeneously Marketing Type New Product 2021
Service 24 Hours Online Service Life Span 15-20 Years
HS Code 8462900 Local Service Ecuador, Kenya, Algeria, Indonesia, Panama, Nigeria, Ghana, Philippines, Uzbekistan, Bangladesh
High Light

0.75kw Automatic Poultry Feeding System


HDG Automatic Poultry Feeding System


4Tiers automatic broiler feeding system

Leave a Message
Product Description

   H Type 4 Tiers Automatic Poultry Feeding System For Chicken Farm Layer Cage



Working Method Of Automatic Poultry Feeding System


Automatic poultry feeding system for chicken farm layer cage, the feed is distributed automatically to the feed carts from the feed silo by the spiral augers located in a pipe with 90-150mm diameter. Feed carts are moved by steel cables. Feed troughs are specially designed in order to distribute the feed in equal to reach tier and to prevent the feeds to be scattered outside the feed trough.


Automatic Poultry Feeding System Features


1 Hopper For Feeding Machine Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel
2 Traction Device Power of motor:0.75kw,tow rope: pp rope with 14mm, speed: 8.67m/minute.
3 Track of Trolley Hot-dip galvanized steel with 48mm*2.75mm.
4 Head and End Frame: Hot-dip galvanized steel with 40mm*60mm*3mm.
5 Operation Each row feeding machine can be operated seperately.
6 Auger Transverse The feeding trolley is conneted with the silo by the transverse feeding auger.
7 Application Suit for both A and H type chicken farm layer cage, chicken farm broiler cage, pullet cages etc.



H Type Chicken Farm Layer Cage Advantages:


1. H type vertical chicken farm layer caged breeding, the number of layers can be selected, up to 10 layers, the breeding density per unit space is high, output is large, and the benefit can be reasonably doubled.

2. Automatic feeding and drinking, saving manpower, improving labor productivity, and increasing the egg-to-feed ratio.

3. Automatic egg collection, reducing labor costs and high stability.

4. Conveyor type automatic manure removal, dry and hygienic, save labor, can clean manure many times a day, greatly reduce the respiratory diseases of chickens.

 5. Concentration of feeding reduces the amount of mobile contact of staff in the chicken coop, which is conducive to the prevention and control of chicken diseases.

6. H type chicken raising equipment, each bird covers an area of 450cm2, and it can also be designed and planned according to the size of the chicken house.

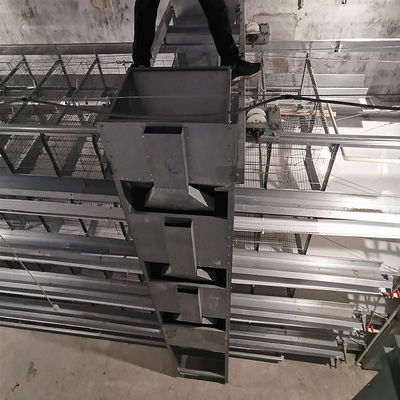

0.75kw H Type 4 Tiers HDG Automatic Poultry Feeding System For Chicken Layer Cage 0

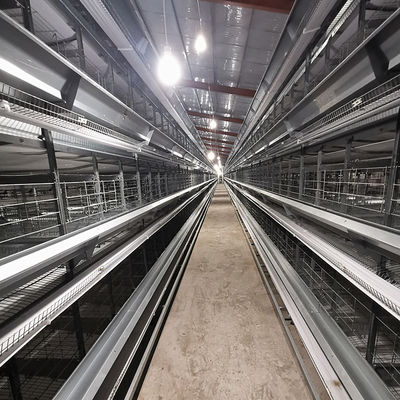

0.75kw H Type 4 Tiers HDG Automatic Poultry Feeding System For Chicken Layer Cage 1
