Q235 HDG Broiler Equipment H Type 1.0mm Meat Chicken Cage

Basic Properties
Place of Origin: China
Brand Name: Silver Star
Certification: ISO9001, SONCAP
Model Number: B4H120
Trading Properties
Minimum Order Quantity: 50 Set
Price: 140USD-285USD
Standard Packaging: Standard Exporting Packaging Or As Client's Request
Delivery Time: In 35 working days after deposit
Payment Terms: T/T, Western Union, D/A, D/P, L/C
Supply Ability: 80000sets/month
Product Summary
H Type Broiler Cage Equipment For Meat Chicken Production H Type Broiler Cage Equipment Description H type broiler cage equipment is for meat chicken production farming. The design and material of the bottom mesh are very important for the growth of broilers. A strong, flexible and hygienic bottom ...

Product Details

Highlight:

Q235 Broiler Equipment

,

1.0mm Broiler Equipment

,

HDG broiler cage equipment

Product Name: H Type Broiler Cage Equipment For Meat Chicken Production
Cage Material: Q235 Low Carbon Steel, No Bend
Marketing Type: New Product 2021 Of Broiler Cage
Drinking Water Pipes: 25mm Round Or Square Tubes
Feeder: Hot Dipped Galvanized, 1.0mm Thickness
Operation Type: Automated Feeding, Automated Drinking, Automated Manure Cleaning, Automated Chicken Harvesting
Application Industries: Animal Husbandry Equipment For Broilers
Local Service: Indonesia, Algeria, Philippines, Ecuador, Panama, Chile, Paraguay, Nigeria, Ghana, Kenya, Thailand, Senegal, Uzbekistan
Surface Treatment: Hot Galvanizing Broiler Cage
HS Code: 84362900
Product Description

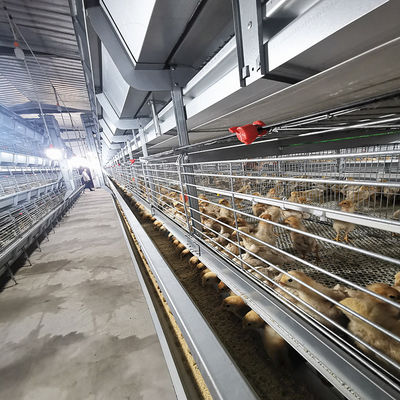

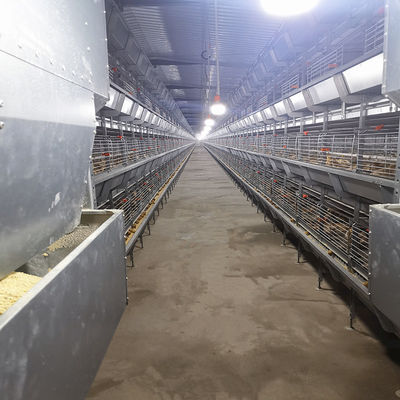

     H Type Broiler Cage Equipment For Meat Chicken Production





H Type Broiler Cage Equipment Description



H type broiler cage equipment is for meat chicken production farming.  The design and material of the bottom mesh are very important for the growth of broilers. A strong, flexible and hygienic bottom netcan avoid the formation of hematomas in chicken breasts, reduce the incidence of coccidia and other diseases, also reduce mortality. A suitable square grid can ensure that the chicken manure leaks out and does not accumulate on the bottom mesh, which can be be easily drawn out, and convenient for cleaning and automatic output after the manure falls on the conveyor belt.





H Type Broiler Cage Equipment Features



1. Save land resources and reduce the cost of chicken house construction. High breeding density, factory-oriented broiler srearing, large-scaled raising, easy cleaning and disinfection. It can raise more batches of broilers every year than floor system;

2. Centralized management, automatic control of feeding system, drinking system, manure removal system, ventilation system, and lighting system reduces the labor of workers. Meanwhile labor productivity, working environment, and feed conversion rate are also improved;

3. Broiler cage raising equipment can obtain a more uniform and consistent broiler population than floor system.

4. The full set of equipment uses hot-dip galvanizing process, aluminum-zinc plate, corrosion resistance, comprehensive use for 15-20 years.

5. Each layer of chicken broiler cages is equipped with a manure cleaning belt, broilers do not have a chance to be touched with manure, and chicken manure is treated regularly. Lower ammonia and hydrogen sulfide and other harmful gases can improve the breeding environment of poultry house, reduce the occurrence of poultry diseases and the cost of medication, increase the efficiency of breeding.

6. The door is opened with a push-in structure, which can be easily fixed in the open and closed state by a spring clip, which is convenient for the observation and epidemic prevention of the chicks.

7. Each layer is covered with a plastic mat to reduce the occurrence of foot pads and foot diseases. Improve the quality level of flat-raised broilers.





Hot-Dip Galvanizing Anti-Corrosion Method



1. Standard hot-dip galvanized anti-corrosion layers can be maintained for 20 years without repairing

2. The galvanized layer forms a special metallurgical structure, which can withstand mechanical damage during transportation and use

3. The galvanized layer and the steel are metallurgically bonded and become a part of the steel surface, so the durability of the coating is more reliable.





 Type H Meat Chicken Production Broiler Cage Equipment Dimension



Models Length(mm) Width(mm) Heigh(mm) Birds Qty/Set
YXH3B156 1480 1750 2800 156
YXH4B208 1480 1750 3600 208
YXH3B90 1500 1000 2200 90
YXH4B120 1500 1000 2850 120
YXH3B60 1000 1000 2200 60
YXH4B80 1000 1000 2850 80
YXH3B66 890 1250 2200 66
YXH4B88 890 1250 2850 88
Meat Chicken Production Broiler Cage Equipment Includes: H type broiler cage body, automatic feeding system, automatic drinking system, automatic birds harvesting system, ventilation system, lighting system, light steel structure poultry house



Q235 HDG Broiler Equipment H Type 1.0mm Meat Chicken Cage
