380v 3phase Chicken Raising Equipment , ISO9001 Chicken Battery Cage

     Automatic Chicken Drinking Feeding Poultry Equipment For Broilers


Introduction Of Automatic Feeding Poultry Equipment For Broilers

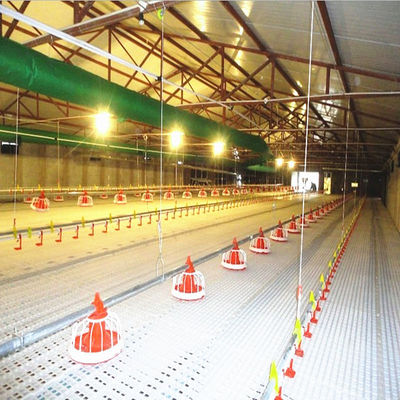

Broiler floor raising system poultry equipment contains main feeding lines, automatic pan feeding system, automatic nipple drinking system, ventilation system.


Features Of Automatic Feeding Poultry Equipment For Broilers

Feeding pan has 13 gears.

The side switch of the feeding pan can make an adjustment, which is more convenient, accurate and quick to adjust the feed flow. The operation is to hold the outer grid by hand and rotate it up and down.

The bottom of the pan can be disassembled on the ground, suitable for day old chicks and broilers;

The V-shaped pan design can reduce the feed storage at the bottom, so that chicken can eat fresh food at any time. The design can also prevent birds from staying on the pan for too long;

The side of the feeder pan is inclined to the center to avoid food waste;
The smooth edges prevent the bird's paws from being injured, ensuring safe and comfortable feeding;
Feeder pan is installed with a fixed type or a swing type

Driving motor:Taiwan motor with overload protection of IP55 grade.0.75kw/1.1kw/1.5kw,380v/220v,1-phase/3-phase,50HZ AC current.

Feed hopper:115L,200l material is hot-dip galvanized sheet,1mm.

Pan feeding system: Conveying pipe 4 pan/3m, diameter is 45mm,material is hot-dip galvanized steel pipe the zinc coating amount is more than 275g/m2.1.2mm.

Spring auger is imported from South Africa.Feeding ability is 400kg/h.

Feed sensor: When feed sensor is installed the feed pan (connect to open),driving motor starts work to convey feed,when feed sensor does not touch feed,and it stops conveying feed when feed sensor touches feed (for main feed line and pan feeding line use).

When feed sensor is installed at the bottom of feed bin (connect to close),the function is opposite the above situation.

Lifting system for feeding line:

Main part:winch,pulley,fixing plate,steel wire rope and clamp.

The height of feeder pan is very important for chicken growing,it is very convenient to adjust the feeding line height by winch.The best height of feeding line is:chicken back height and feeder pan up grill should at the same leverl.

It is convenient to clean the chicken house and for chicken's in and out through adjusting feeding line height.

Pay Attention To Broiler Raising

1. Choose healthy chicks: In addition to choosing a good broiler cage and careful breeding, the choice of broiler chicks is also very important. The quality of chicks can determine the quality of adult chickens and directly affect the quality of chicken;

2. Do a good job of raising chicks: The key to the success or failure of brooding lies in whether the temperature of the chicken house is appropriate. The chicks have just been born, their own temperature regulation ability is very weak, and the healthy growth of the chicks cannot be guaranteed. It is recommended that the breeder maintain the temperature of the chicken house 3 days before brooding. Keep the temperature at 33-35℃. At 1 week of age, the room temperature is maintained at 30-32℃, and then lowered by 2-3℃ every week until the room temperature drops to 21℃.
3. Adjust the temperature in time: Farmers should pay attention to the fast growth of broilers, and the appropriate temperature for different ages is different. It should be adjusted in time according to the season and the age of the broiler. The temperature requirements for broiler chickens: 1-3 days old at 34～35℃, 4～7 days old at 32～33℃, and then drop by 2～3℃ every week. At the end of the third week, stop cooling until 20～21℃. And keep this temperature.
