4 Doors q235 H Type Battery Broiler Equipment 3 Layers Poultry Shed

Place of Origin China
Brand Name Silver Star
Certification ISO9001:2005, SONCAP
Model Number B4H120, B4H208
Minimum Order Quantity 50 Set
Price 150USD-265USD
Packaging Details Standard Exporting Packaging Or As Client's Request
Delivery Time In 35 working days after deposit
Payment Terms T/T, Western Union, D/A, D/P, L/C
Supply Ability 80000sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Keywords H Type Automatic Broiler Equipment Poultry Shed Design Chicken Farm Marketing Type New Product 2021
Cage Size 1500x1000x440mm, 1000x1000x440mm Birds Capacity 60, 80, 90, 120, 156, 208birds
Material Q235 Wire Mesh Characterisitics Automatic Feeding System, Automatic Water Drinking System, Automatic Manure Cleaning System
Use Chicken Farm Broiler Equipment Local Service Indonesia, Philippines, Ecuador, Panama, Chile, Paraguay, Nigeria, Ghana, Kenya, Senegal, Uzbekistan
Service Online Or On Site Guidance Life Service 15-20 Years
High Light

4Doors Broiler Equipment


3Layers Broiler Equipment


q235 battery cage for layers

Leave a Message
Product Description

      H Type Automatic Broiler Equipment Poultry Shed Design Chicken Farm



H Type Automatic Chicken Cage Broiler Equipment

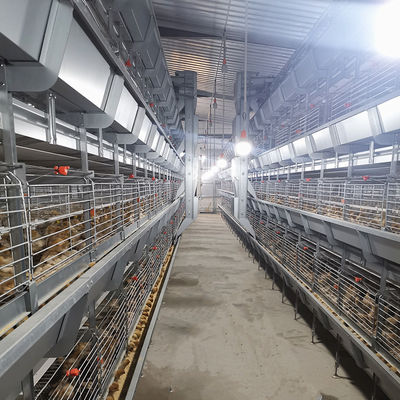

H type chicken cage broiler equipment is designed fully automatic for large-scaled poultry shed chicken farms. Broilers grow in a single unit cage from entering the cage to leave for the slaughter house, avoiding the cross flow of people, objects, chickens and the spread of diseases. Adopt the conveyor belt automatic manure removal system to remove chicken manure at any time. The scientific environmental automatic control system improves the air quality and growth environment. The chicken house has a clean environment and fresh air, which reduces the occurrence of diseases and greatly reduces the use of drugs for chickens.



H Type Automatic Broiler Equipment Features


1. Good hygienic raising conditions: quick and easy cleaning, disinfection after every crop, reduce time between the crops;
2. The complete automatic raising system: healthy, uniform flock, increased growth rate, improved feed conversion, up to one crop more per year is possible;
3. Automatic control system of ventilation and temperature:  the ventilation is controlled and adjusted by the controller based on the environment in the poultry shed;
4. Fully automatic system: including automatic feeding system, drinking system, environment control system, manure removal system;
5. Automatic chicken harvesting system: automatic transport of the ready for slaughtering broilers out of the house;
6. Daily manure removal: minimizes ammonia emissions in the house;
7. Pulling type of soft PP floors are flexible and easy to operate: prevents breast blisters and promotes clean and healthy feet thus providing excellent hygienic.Quick and cost-saving moving-out of the broilers;
8. Higher density: three times higher stocking density compared with floor production.

9. Hot galvanizing broiler cage: last for more than 25 years life span.



H Type Chicken Cage Broiler Equipment Size


Model Length(mm) Width(mm) Heigh(mm) Door Qty Birds Qty/Set
3 Tiers 1480 1750 2800 4 156
4 Tiers 1480 1750 3600 4 208
3 Tiers 1500 1000 2200 1 90
4 Tiers 1500 1000 2850 1 120
3 Tiers 1000 1000 2200 1 60
4 Tiers 1000 1000 2850 1 80
3 Tiers 890 1250 2200 1 66
4 Tiers 890 1250 2850 1 88
Cage System Broiler Equipment Includes: H type chicken broiler cage body, automatic feeding system, automatic drinking system, automatic birds harvesting system, ventilation system, lighting system, light steel structure poultry house



Pay Attention To Broiler Raising


1. Choose healthy chicks: In addition to choosing a good broiler cage and careful breeding, the choice of broiler chicks is also very important. The quality of chicks can determine the quality of adult chickens and directly affect the quality of chicken;

2. Do a good job of raising chicks: The key to the success or failure of brooding lies in whether the temperature of the chicken house is appropriate. The chicks have just been born, their own temperature regulation ability is very weak, and the healthy growth of the chicks cannot be guaranteed. It is recommended that the breeder maintain the temperature of the chicken house 3 days before brooding. Keep the temperature at 33-35℃. At 1 week of age, the room temperature is maintained at 30-32℃, and then lowered by 2-3℃ every week until the room temperature drops to 21℃.
