108-144Birds Poultry Cage 3-4Layers Broiler Raising Equipment
Product Details
108Birds Poultry Cage
,4Layers Poultry Cage
,Poultry 144 broiler raising equipment

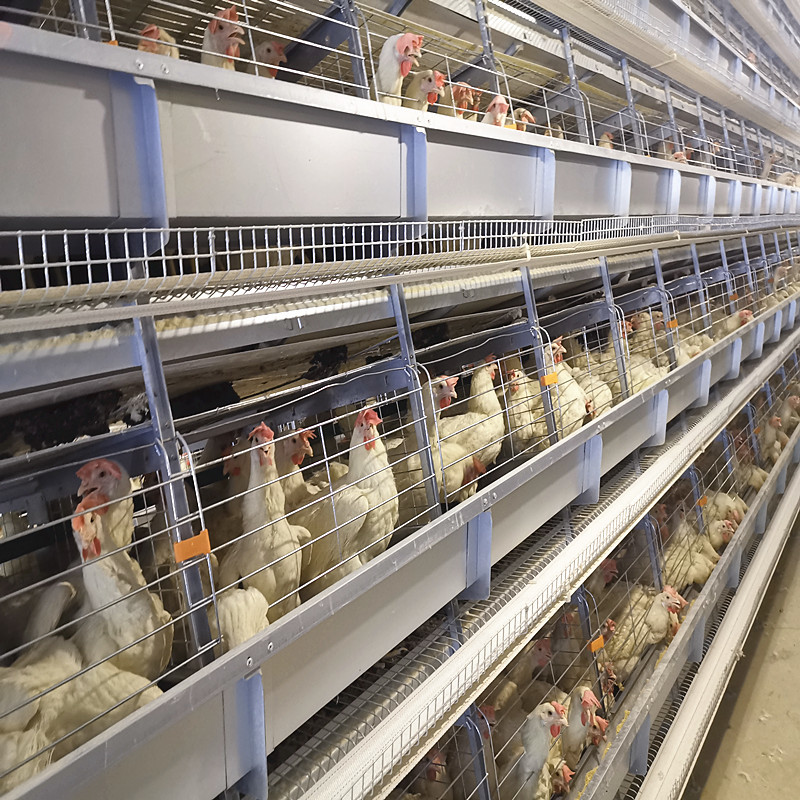

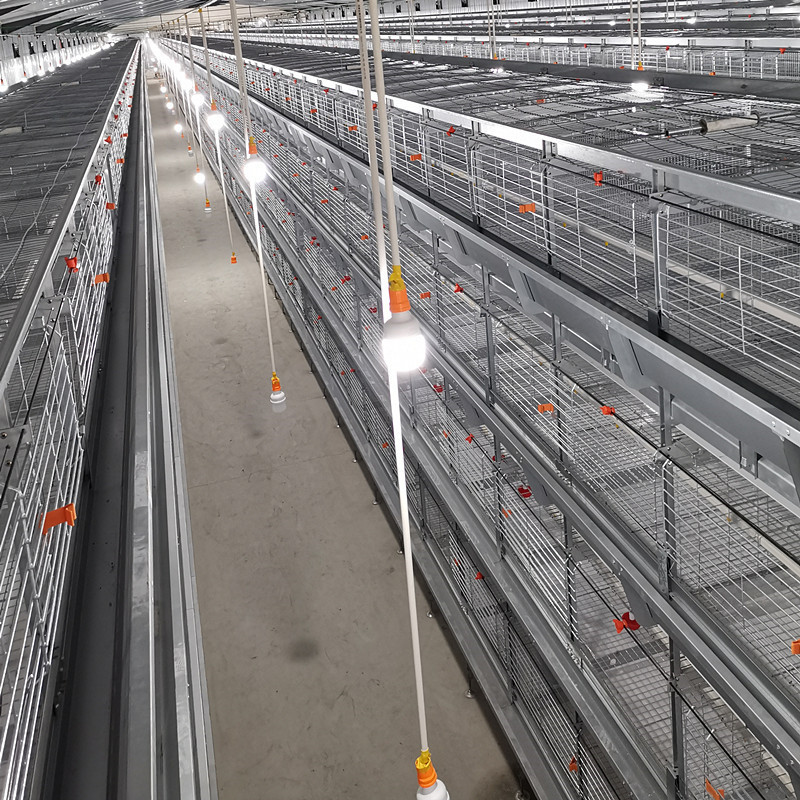

Turnkey Project Automatic Chicken Cage Layer And Broiler Raising Equipment
Automatic Chicken Cage Layer And Broiler Raising Equipment Introduction:
Layer and broiler raising equipment use automatic chicken cage adopts best Q235 low carbon steel structure, no bend on wire mesh, hot dip galvanizing after welding process for both H type layer and broiler chicken cage has an over 25 years of life service. We can supply you one turmkey project for layer and broiler raising farms.
Automatic Chicken Cage Layer Broiler Raising Equipment Advantages:
1. High-density breeding, saving land and investment. Automatic chicken cage layer and broiler raising equipment is easier to observe the birds, easy to gather or weak in selection.
2. Full sets of automatic chicken cage equipment is made of hot-dip galvanized processing, which is corrosion-resistant and ensures over 25 years lifespan.
3. With sufficient feed, good water level and healthy uniformity limit the minimum amount of exercise, energy consumption of chickens and save feed.
4. Chicken manure is completely separated from the chicken, and the manure can fall directly to the belt. The dust in the chicken house is greatly reduced, less chance of disease infection from the manure, and greatly reduce the mortality rate of birds
5. Suitable for closed and open chicken houses. Automatically control ventilation and temperature help solve hot weather’s problem
6. Belt cleaning method greatly improves the air quality in the chicken house, relatively reduces the occurrence of some diseases, and has high safety.
7. Egg breakage rate,high cleanliness.
Layer And Broiler Chicken Poultry Cage Size:
| Chicken Cage Layer Raising Equipment | |||||||
| Frame A Chicken Cage Layer Raising Equipment | Frame H Chicken Cage Layer Raising Equipment | ||||||
| Tier/Layers | Size/Door (cm) | Cage Size/ Set(cm) | Birds Qty | Tier/Layers | Size/Door (cm) | Cage Size/ Set(cm) | Birds Qty |
| 3 | 39x38x38 | 195x230x150 | 90 | 3 | 65x62.5x50 | 65x125x222 | 54 |
| 4 | 39x38x38 | 195x230x190 | 120 | 4 | 65x62.5x50 | 65x125x287 | 72 |
| 3 | 48.7x41x41 | 195x230x160 | 96 | 5 | 65x62.5x50 | 65x125x352 | 90 |
| 4 | 48.7x41x41 | 195x230x200 | 128 | 6 | 65x62.5x50 | 65x125x417 | 108 |
| 3 | 39x41x41 | 195x230x160 | 120 | 8 | 65x62.5x50 | 65x125x547 | 144 |
| 4 | 39x41x41 | 195x230x200 | 160 | 3 | 43x60x41 | 183x120x214 | 144 |
| 3 | 43x41x41 | 215x230x160 | 120 | 4 | 43x60x41 | 183x120x279 | 192 |
| 4 | 43x41x41 | 215x230x200 | 160 | 5 | 43x60x41 | 183x120x344 | 240 |
| 3 | 43x45x41 | 215x236x160 | 120 | 6 | 43x60x41 | 183x120x409 | 288 |
| 4 | 43x45x41 | 215x236x200 | 160 | 8 | 43x60x41 | 183x120x539 | 384 |
| Chicken Cage Broiler Raising Equipment | |||||||
| Type A Chicken Cage Broiler Raising Equipment | Type H Chicken Cage Broiler Raising Equipment | ||||||
| Tier/Layers | Size/Door (cm) | Cage Size/ Set(cm) | Birds Qty | Tier/Layers | Size/Door (cm) | Cage Size/ Set(cm) | Birds Qty |
| 3 | 61x50x44 | 183x236x150 | 108 | 3 | 100x100x44 | 100x100x220 | 60 |
| 4 | 100x100x44 | 100x100x285 | 80 | ||||
| 3 | 100x150x44 | 100x150x220 | 90 | ||||
| 4 | 61x50x44 | 183x236x190 | 144 | 4 | 100x150x44 | 100x150x285 | 120 |
| 3 | 148x175x44 | 148x175x280 | 144 | ||||
| 4 | 148x175x44 | 148x175x360 | 192 | ||||
Why Use Chicken Cage In Poultry Production?
1. Reduce feed wastage and maximize productivity in layer production
2. Increased production
3. Better overall management of flock
4. Save on labour costs
5. Zero accidental mortalities
6. More effective management of poultry waste
7. The cages systems are reusable
-
