Q235 Chicken Farming Equipment , 54-384 Birds/Set H / A Type Layer Cage

Place of Origin China
Brand Name Silver Star
Certification SGS, ISO9001
Model Number YXH4L-192, YHA4L-160
Minimum Order Quantity 50 Sets
Price 135-265USD/SET
Packaging Details FCL: Exporting standard packaging; LCL: In wooden box packages
Delivery Time 18-40 working days after advanced payment
Payment Terms T/T, Western Union, , L/C, D/A
Supply Ability 35000sets/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Keyword Chicken Layer Cage Plan, Poultry Layer Cage Birds Capacity 160, 192 Birds
Shape A&H Type Layer Cage Layer Cage Size 650x625x500mm, 450x600x430mm
Local Service Ecuador, Indonesia, Philippines, Panama, Chile, Thailand, Uzbekistan, Nigeria, Algeria, Ghana, Kenya, Thailand, Segenal Power 380v, 3phase, 50hz Or As Clinet's Request
Function Automatic Layer Chicken Cage Warranty 12 Months After Installation
Apply For Poultry Layer Farming Equipment
High Light

384 Birds chicken farming equipment


Q235 a type layer cage


54 Birds a type layer cage

Leave a Message
Product Description

 Big Size Of A And H Type Poultry Layer Cage Professional Plan Chicken Farming Equipment



Why Choose Chicken Cages In Poultry Production:


1. Reduce feed wastage and maximize productivity in layer production;
2. Increased production;
3. Better overall management of flock;
4. Save on labour costs;
5. Reduce accidental mortalities;
6. More effective management of poultry waste;
7. The cages are reusable.

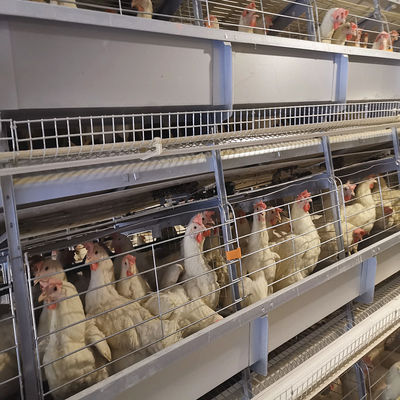

H Type Poultry Layer Cages Information:


1. Silver Star h type poultry layer cage structure is designed as a single cage chicken system, the size of each cage is 650*625*500 mm, short distance between two cage frames make the cages not easy to be deformed, also available to adjust the rearing density according to customer's request;

2. The layer space is 650mm, and the increase in height is in favour of ventilation and cooling. The maximum layers/floors of equipment can be up to 10 tiers, to provide strong support for future large-scaled breeding;

3. All cage meshes are Q235 bridge steel wire, the surface adopt hot-dip galvanizing treatment, strong anti-rust;
4. The material of cage frame is 275g hot galvanized steel sheet, more durable and not easy to deformation.



Layer Cage Parameter:


Layer Cage Body

1. Size: 65x62.5x50cm, 183x60x41mm;

2. Material: Hot dipped galvanized;

3. Feed trough:Zn-Al material. Thickness: 1.0mm.

4. Can be designed into 3, 4, 5, 6, 8, 9, 10 Tiers;

5. Capacity:54-384 birds/set

Automatic Hopper Feeding Machine Equipment

1. Hopper:Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel

2. Traction Device :Power of motor:0.75kw,tow rope: pp rope with 14mm,speed:8.67m/minute.

3. Track of Trolley:Hot-dip galvanized steel with 48mm*2.75mm.

4. Head and end frame:Hot-dip galvanized steel with 40mm*60mm*3mm.

5. Silos

Automatic Drinking System

1. Nipple Drinkers

2. Water Pipes

3. Water Pressure regulator

4. Filter

5. Medical pump


Automatic Egg Collecting Machine

1. Hot-dip galvanized 1.5mm side plate,speed 4m/min.

2. Egg guider:Hot-dip galvanized with thickness 1mm,configuration with stretching device.

3. Egg belt:100mm width

4. Crosswise egg conveyor

Automatic Poultry Manure Removal Machine

1. Belt type manure cleaning machine:Hot-dip galvanized

2. Manure cleaning belt:Material is PP, Thickness is 1.2mm.Width is 1.2m/ 1.25m.

3. Bracket for manure cleaning belt:hot-dip galvanized steel, 1.5mm thickness.

4. Transverse manure conveying


Environmental Controller Fans, cooling pad, air inlets, intelligent controller



Customer Service:

Pre-Sales Service:
1. Most reasonable solution will be served according to clinets' budget and land size;
2. Good advice will be offered about " How to manage a chicken farm";
3. Online technical service in 24 hours by WhatsApp,e-mail and phone calls;

Sales Service:
1. Payment receipt with our company seals and boss's signature;
2. Supervision and information of production progress;

After-Sales Service:
1. Container loading report;
2. Spared parts will be provided for free when delivery;
3. Onsite installation guidance and training for your workers;
4. One year warranty after chicken cage equipments running;
5. The lifespan of H type chicken layer cages system is more than 25 years.
