380V Broiler Automatic Feeder , 500KGS Hot Dip Galvanized Chicken Cage Equipment

Place of Origin China
Brand Name Silver Star
Certification ISO9001, SONCAP
Model Number YXAF4
Minimum Order Quantity 1Set
Price 1500-3500USD/ Set
Packaging Details Standard exporting packaging way
Delivery Time 7-15 working days
Payment Terms T/T, Western Union, L/C, D/A, D/P
Supply Ability 500sets/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Automatic Poultry Feeding System Of Battery Cage Type Hopper Trolley Feeding Machine, Gantry Feeding Machine
Material Hot Galvanized Steel Board Voltage 380V, 200V, Or As Client's Request
Weight 500KGS Usage For Egg Layer Chicken Cage, Broiler Cage, Brooder Cage Of Battery Cages
Feature Automatic Feedind Machine Of Chicken Cage Application Animal Husbandry Poultry Farming Equipment
High Light

380V broiler automatic feeder


Hot Dip Galvanized broiler automatic feeder


500KGS chicken cage equipment

Leave a Message
Product Description

Automatic Poultry Feeding System For Animal Husbandry Chicken Cage Equipment

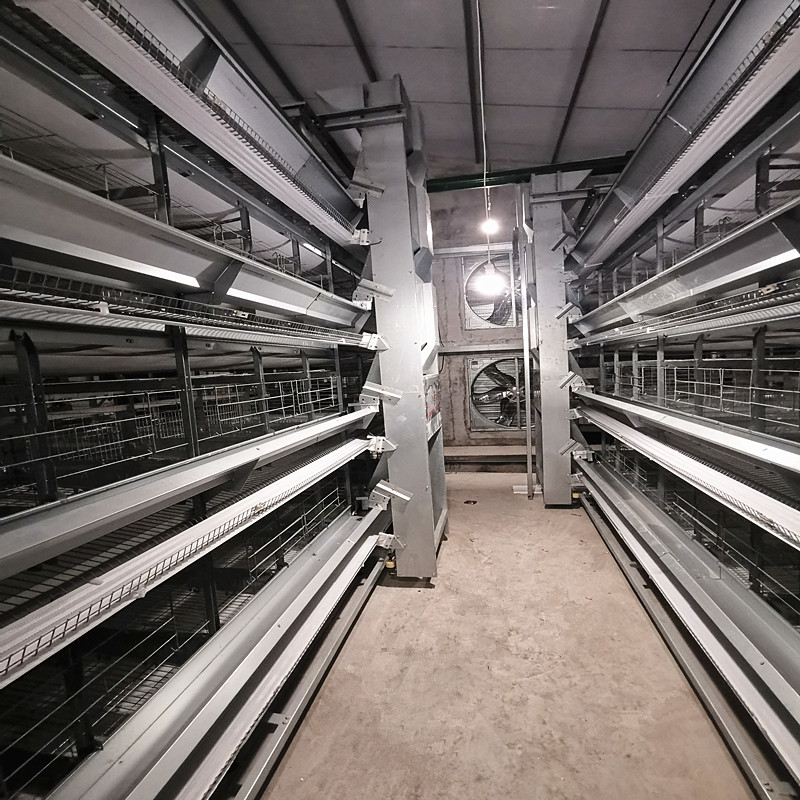

Automatic Poultry Feeding System is Silver Star's Full Automatic Feeding Machine For Poultry Chicken Battery Cage Use.

Silver Star poultry feeding machine mainly includes hopper  trolley feeding machine, gantry feeding machine, semi-automatic feeding machine, pan feeding system, and manual feeders.

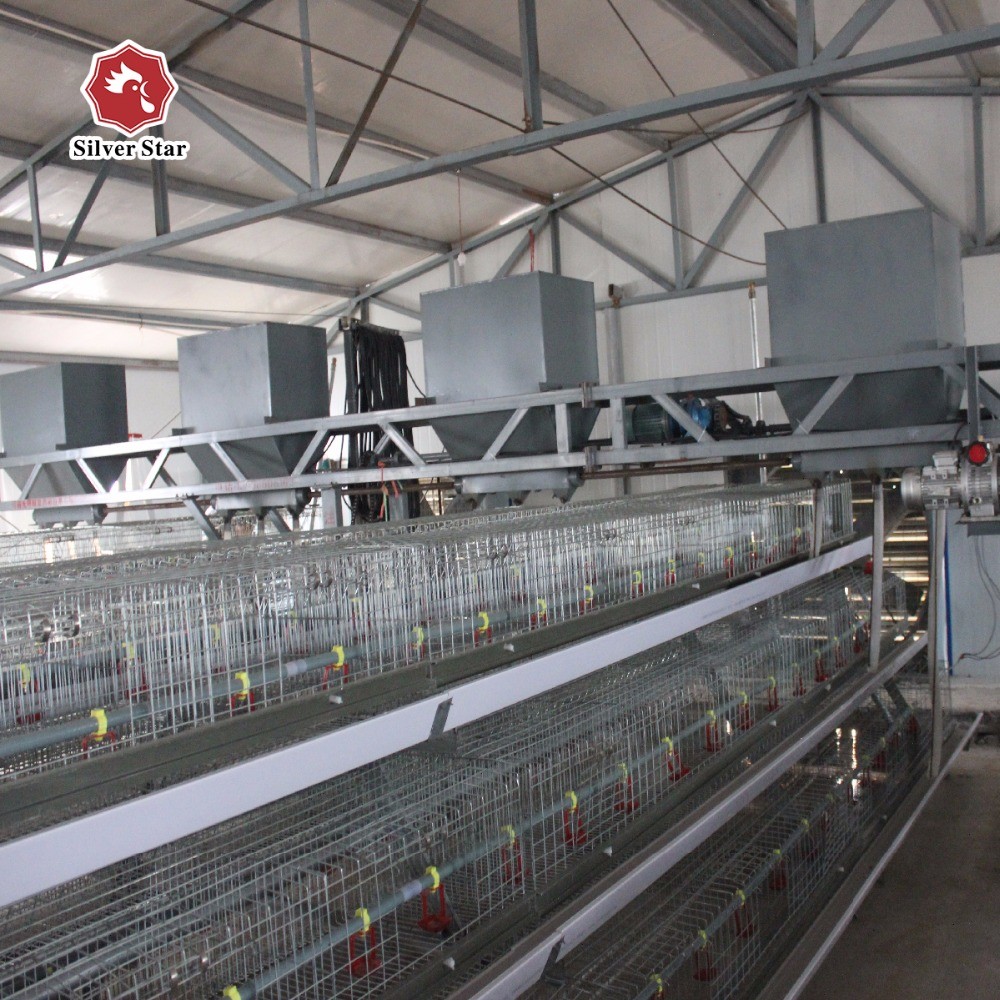

Automatic On-Rail Hopper Feeding Machine

1 Hopper: Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel
2 Traction Device : Power of motor:0.75kw,tow rope: pp rope with 14mm, speed: 8.67m/minute.
3 Track of Trolley: Hot-dip galvanized steel with 48mm*2.75mm.
4 Head and end frame: Hot-dip galvanized steel with 40mm*60mm*3mm.
5 Operation: Each row feeding machine can be operated seperately.
6 Auger Transverse: The feeding trolley is conneted with the silo by the transverse feeding auger.
7 Application: Suit for both A and H type layer battery chicken cage, broiler chicken cage, brooder cages etc.



1. Hopper trolley feeding machine can make feed distributed hygienically, homogeneous, mixed and equally.

2. With trolley feeding system, feed is distributed automatically to the feed carts from the feed silos by the spiral augers located in a pipe with90-150 mm diameter.

380V Broiler Automatic Feeder , 500KGS Hot Dip Galvanized Chicken Cage Equipment 0



Silo&Feed Uploading Machine/ Feed Elevator

Feed silos in poultry farm are more widely running for bulk storage and feed production.Silo is made of hot galvanized steel, which is suitable for medium and large scaled poultry farm to protect the food from humidity and transport the feed easily to the feeding trolley carts.


Feeding Silo Specification

Silo Diameter/ mm Levels Volume/ m3 Tons Height m Foundation Size/ mm
2750 1 11.7 7.5 4.7 3600X3600
2750 2 16.9 11 5.6 3600X3600
2750 3 22.1 14 6.5 3600X3600
2750 4 27.3 17 7.4 3600X3600
3668 1 24.5 16 5.7 4200X4200
3668 2 33.8 22 6.6 4200X4200
3668 3 43.1 28 7.5 4200X4200
3668 4 52.4 34 8.4 4200X4200


Feed uploading machine/ feed elevator is used for transporting the feed to silos automatically. If you have the feed tank truck, then no need this feeding elevator.

380V Broiler Automatic Feeder , 500KGS Hot Dip Galvanized Chicken Cage Equipment 1

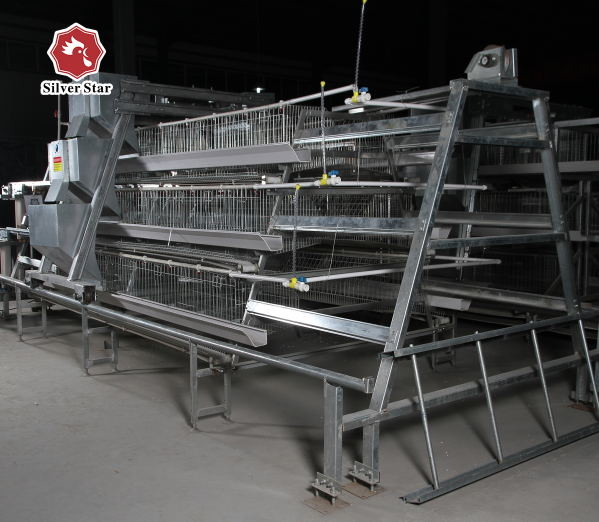

Gantry Feeding Machine

Compared with hopper trolly feeding machine, gantry feeding machine is more suitable for A type chicken layer cage, A type broiler chicken cage, and A type chicks cage. Also,gantry feeding machine is much cheaper, easily operation, which is running for the whole lines of cages.

380V Broiler Automatic Feeder , 500KGS Hot Dip Galvanized Chicken Cage Equipment 2


Semi-Automatic Poultry Feeding Machine

Semi-automatic feeding machine is designed for small and medium chicken farms, integrated batteries, hoppers, and feed tubes to improve feeding speed, which is suitable for both A and H type chicken cages for egg layers, hens, broilers, brooders etc.


This type of poultry feeding machine has multiple features, specifically to solve the problem of feeding poultry in small and medium chicken farms. This machine can automatically feeding and is driven by a DC motor. The noise is very small during operation, the operation is convenient, and the moving direction is easy to change. It is also a time-saving device with uniform feeding and extremely low power consumption.

380V Broiler Automatic Feeder , 500KGS Hot Dip Galvanized Chicken Cage Equipment 3

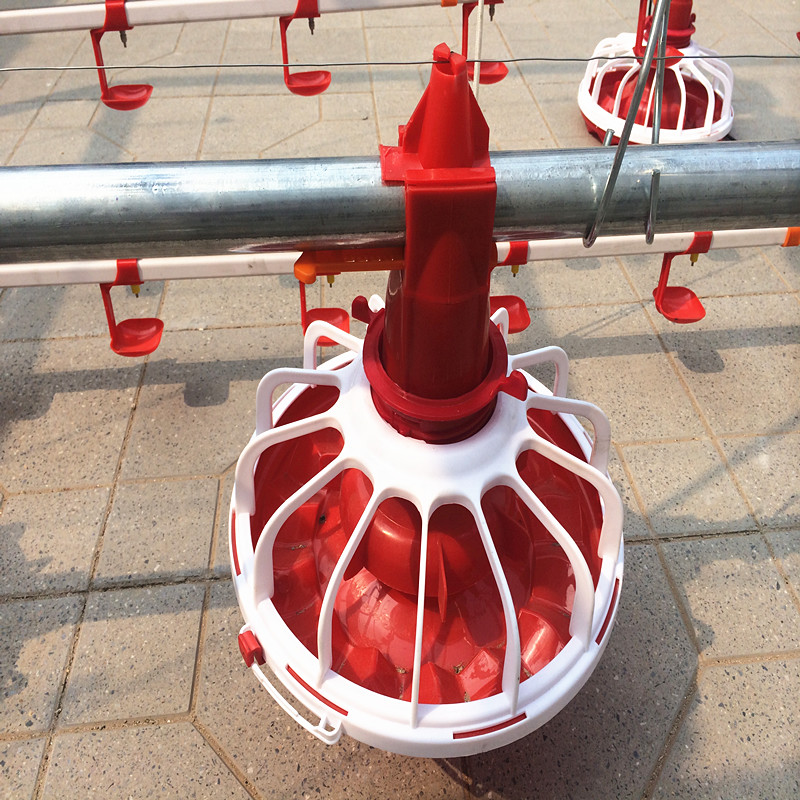

Pan Feedind System

Chicken Pan Feeder is widely used for chicks and broilers floor/ ground system,

380V Broiler Automatic Feeder , 500KGS Hot Dip Galvanized Chicken Cage Equipment 4

The side switch of the feeding pan can make an adjustment, which is more convenient, accurate and quick to adjust the feed flow. The operation is to hold the outer grid by hand and rotate it up and down;

The bottom of the pan can be disassembled on the ground, suitable for day old chicks and broilers;

The V-shaped pan design can reduce the feed storage at the bottom, so that chicken can eat fresh food at any time. The design can also prevent birds from staying on the pan for too long;

The side of the feeder pan is inclined to the center to avoid food waste;
The smooth edges prevent the bird's paws from being injured, ensuring safe and comfortable feeding;
Feeder pan is installed with a fixed type or a swing type;

Drive motor: Taiwan motor, IP55 level overload protection. 0.75kw/1.1kw/1.5kw, 380v/220v, 1 phase/3 phase, 50HZ AC current;

Feeding hopper: 115L, 200L, hot-dip galvanized sheet, 1mm thickness;

Pan feeding system:The conveying pipe is 4 trays/3m 3 trays/3m, diameter 45mm, material is hot-dip galvanized steel pipe, galvanized quantity is greater than 275g/m2.1.2mm;
The spring auger imported from South Africa has a feeding capacity of 400kg/h;

Feed sensor:After the feed sensor is installed on the feed tray (opened), the drive motor starts to convey the feed. when feed sensor does not touch feed,and it stops conveying feed when feed sensor touches feed (for main feed line and pan feeding line use). When the feed sensor is installed at the bottom of the feed bin (connected and closed), the function is opposite to the above situation.

Feeding line lifting system:
Main components: winch, pulley, fixed plate, wire rope and clamp;
The height of the feed pan is very important to the growth of the chicken, and it is very convenient to adjust the height of the feed line through the winch. The best height of the feed line is: the height of the chicken back and the grill on the feed pan should be on the same horizontal line.
By adjusting the height of the feeding line, it is convenient to clean the chicken house and the in and out of chickens.



Manual Poultry Feeders

Manual poultry feeders contain PVC feeders and Zn-Al feeders,which are suitable for A and H type chicken battery cages .

380V Broiler Automatic Feeder , 500KGS Hot Dip Galvanized Chicken Cage Equipment 5
