HDG Automatic Broiler Feeding System

Basic Properties
Place of Origin: China
Brand Name: Silver Star
Certification: ISO9001, SONCAP
Model Number: YXH4L192, YXHF3
Trading Properties
Minimum Order Quantity: 50Set
Price: 140-285USD/ Set
Standard Packaging: FCL: Standard exporting packaging; LCL: Wooden box, carton packaging
Delivery Time: in 30 working days after deposit
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 20000sets/week
Product Summary
Layer Poultry Farming Cage Design With Automatic Feeding Machine Layer Poultry Farming Cage Information Layer poultry farming cage is designed from 3 tiers up to 10 tiers, and our poultry chicken battery cage system is certified by ISO9001, with scientific design and effecient working process, solid ...

Product Details

Highlight:

Q235 automatic broiler feeding system

,

10layers automatic broiler feeding system

,

HDG Automatic Broiler Feeding System

Product Name: Layer Poultry Farming Cage Design With Automatic Feeding Machine
Layers/Floors: 3-10 Layers Of Poultry Farm Cage
Cage Legs: U Shaped Hot Galvanized Steel
Wire Mesh Material: Q235 Low Carbon Steel
Feeding Feature: Smooth And Uniform Working
Feed Trough: 1.0mm Galvanized Steel Feeder
Use For: Layer Poultry Farming Animal Equipment
Surface Treatment: Hot Galvanizing After Welding
HS Code: 8462900
Local Service: Ecuador, Kenya, Algeria, Indonesia, Panama, Nigeria, Ghana, Philippines, Uzbekistan, Bangladesh
Product Description

      Layer Poultry Farming Cage Design With Automatic Feeding Machine





Layer Poultry Farming Cage Information

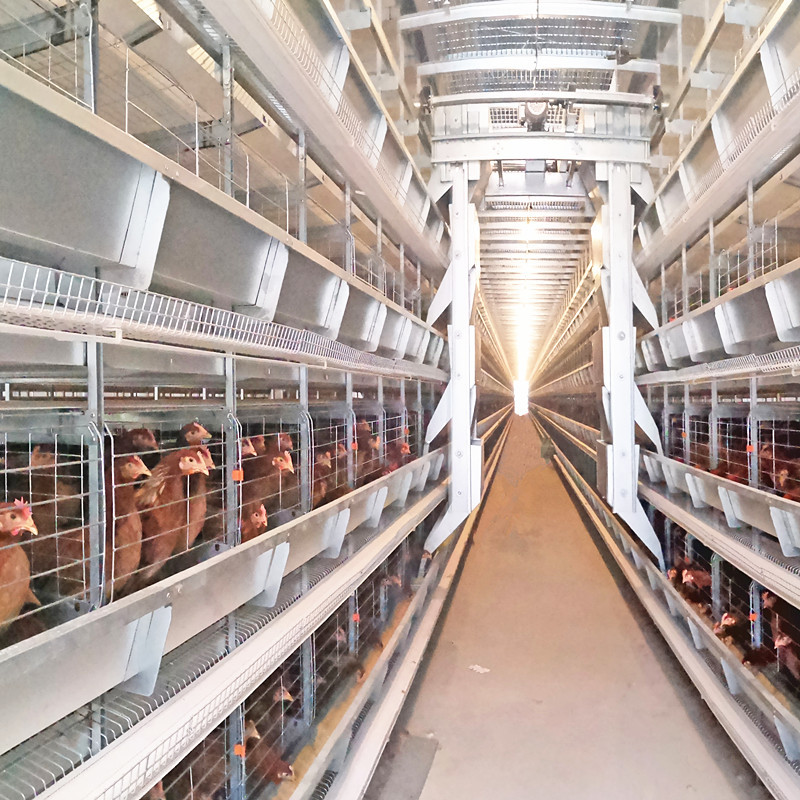

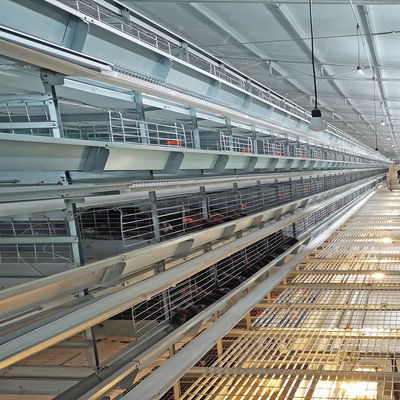

Layer poultry farming cage is designed from 3 tiers up to 10 tiers, and our poultry chicken battery cage system is certified by ISO9001, with scientific design and effecient working process, solid structure, and one-site installation services, which is very popular in closed house for large scaled poultry farm. All equipnents contain automatic feeding machine, automatic egg collecting machine, automatic manre faces removal machine, ventilation equipments, and prepab steel structure poultry houses.





Automatic Feeding Machine Structure



1. Layer Poultry Farming Cage Feed Hopper: Each layer of cage with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel

2. Traction Device: Power of motor:0.75kw,tow rope: pp rope with 14mm, speed: 8.67m/minute.

3. Track of Trolley: Hot dip galvanized steel with 48mm*2.75mm.

4. Head and End Frame: Hot-dip galvanized steel with 40mm*60mm*3mm.

5. Operation: Each line of feeding machine can be operated seperately.

6. Auger Transverse: The feeding trolley carts is conneted with the silo by the transverse feeding auger.

7. Application: Suit for both A and H type battery cage poultry layers, broiler chicken poultry cage, battery brooder cage etc.




Layer Poultry Farming Cage Size



H Type Layer Poultry Farming Cage
Model Length(mm) Width(mm) Heigh(mm) Cells Qty Birds Qty/Set
3 Tiers 1950 1200 2140 4 144
4 Tiers 1800 1200 2790 4 192
5 Tiers 1800 1200 3440 4 240
6 Tiers 1800 1200 4090 4 288
8 Tiers 1800 1200 5390 4 384
3 Tiers 650 1250 2220 1 54
4 Tiers 650 1250 2870 1 72
5 Tiers 650 1250 3520 1 90
6 Tiers 650 1250 4170 1 108
8 Tiers 650 1250 5470 1 144





Why To Choose Layer Poultry Farming Cage Raising Chicken ?



1. The environment of poultry chicken house is controllable, which is conducive to the physiological and production needs of chicken.

2. Automatic drinking, feeding, manure cleaning, eggs collecting, saving labors, reducing breeding cost, multi-layer battery cage saves more space than floor raising, high land utilization rate, saving chicken house construction and land cost.

3. Due to the good isolation between the close chicken house and the outside , the chance of cross contamination of chickens will be greatly reduced, which is conducive to the prevention and control of epidemic diseases, and save the cost of epidemic prevention.
