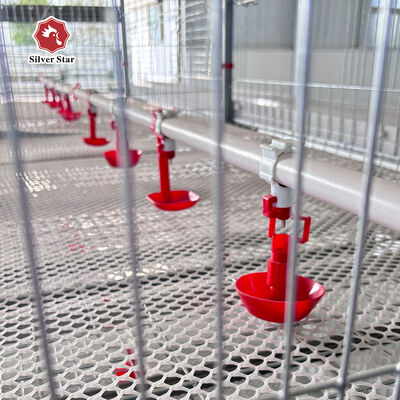

Automatic H-Type Baby Chick Cage System with Hot Dip Galvanizing and Automatic Nipple Drinkers for 100-300 Chickens/set
Product Details
| Feedingsystem | Automatic Feeding Trough | Material | Galvanized Steel |
|---|---|---|---|
| Voltage | 380V | Use For | Poultry Equipment For Broiler |
| Cage Size | 1000x1250x2900mm | Ventilation System | Yes |
| Surface Process | Hot Dip Galvanizing | Life Time | 15-20years |
| Cage Material | Q235 National Bridge Steel Wire | Ventilation | Good Ventilation With Mesh Sides |
| Usage | Suitable For Commercial Poultry Farming | Watersystem | Automatic Nipple Drinkers |
| Cleaning | Easy To Clean With Removable Trays | Capacity | 100-300 Chickens/set |
| Highlight | Automatic H-Type baby chick cage,Hot dip galvanizing baby chick cage,Baby chick cage with nipple drinkers |
||
Product Description
Automatic Broiler Battery Cage System Baby Chick Cage Factory Direct Factory Price

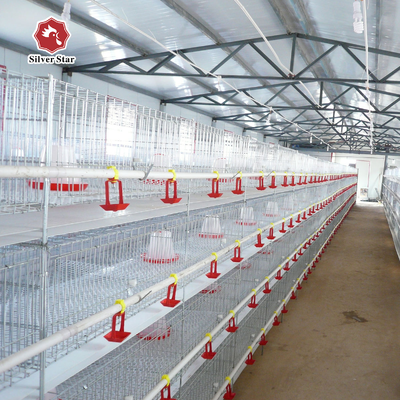

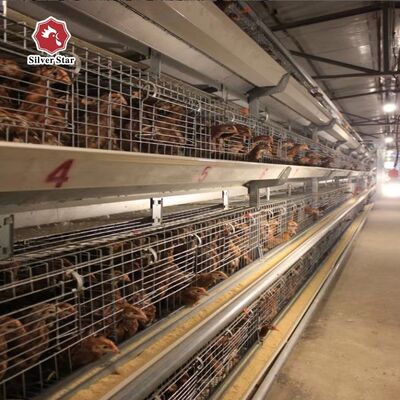

High-Efficiency Automatic Broiler Battery Cage System
Looking to maximize meat production and reduce labor costs? Our industrial-grade Automatic Broiler Battery Cage System is designed for modern commercial poultry farms, delivering up to 3x higher stocking density, rapid growth rates, and seamless end-to-end automation.
Compatible with complete automatic supporting systems including feeding, drinking, manure cleaning and ventilation. Available in multiple tier options, suitable for various chicken houses. Cost-effective, labor-saving and easy for large-scale intensive breeding.
| Model | Cell size | Cage size/set | Birds Qty/set | Each Bird Area/cm² |
|---|---|---|---|---|
| 3 Tiers | 150*100*47cm | 150*145*225 | 102 | 428.57cm² |
| 4 Tiers | 150*100*47cm | 150*145*290 | 140 | 428.57cm² |
| 5 Tiers | 150*100*47cm | 150*145*355 | 170 | 428.57cm² |
Product Overview
Our Automatic Broiler Battery Cage System represents the latest in industrial poultry engineering. Tailored specifically for commercial meat chicken production (broilers), this system provides a highly controlled, hygienic environment that accelerates bird weight gain while minimizing mortality and feed conversion ratios (FCR).
Manufactured from heavy-duty Q235 steel with hot-dip galvanized coating, our broiler cages are available in 3-tier, 4-tier, and 5-tier configurations. The system integrates automated feeding, nipple drinking, manure removal, climate control, and automatic bird harvesting/harvesting belts, making it the ideal choice for large-scale modern poultry enterprises aiming for fast ROI.
Key Product Features
- Heavy-Duty Hot-Dip Galvanized Frame: Coated with 275g/m² zinc layer for supreme anti-corrosion resistance, ensuring a 20+ year lifespan against harsh uric acid environments.
- Special Plastic Coated/Galvanized Bottom Mesh: Designed with optimal elasticity to prevent breast blisters, foot injuries, and leg deformities in heavy broilers.
- Flexible Sliding Cage Doors: Push-in or fully opening front doors allow easy bird placement and stress-free harvesting.
- Modular & Space-Saving Design: Maximizes vertical space in poultry houses, increasing stocking capacity by 200% to 300% compared to traditional floor raising.
- Integrated Automated Systems: Fully compatible with automatic feeding trolleys, water pressure regulators, manure belts, and smart environment controllers.
Core Advantages for Your Farm
| Parameter / Metric | Traditional Floor Raising | Our Broiler Battery Cage System |
|---|---|---|
| Stocking Density | Low (10-12 birds/m²) | High (30-40 birds/m²) |
| Feed Conversion Ratio (FCR) | Higher (Feed loss & extra energy spent walking) | Lower (Maximized feed energy for meat gain) |
| Disease Control | High risk of Coccidiosis (direct manure contact) | Zero manure contact; dramatically reduced mortality |
| Labor Efficiency | Requires intensive manual labor | 1 worker can manage 30,000+ birds with automation |
Automatic Feeding System: Features & Advantages
Features:
- Trolley/Silo Feed Distribution: Evenly distributes feed along each tier using motor-driven feeding carts with customizable feeding speeds.
- Anti-Scratch Feed Troughs: Designed with inward-curved rims and adjustable feed regulators to prevent birds from flipping feed out.
- Auger & Hopper Refilling: Seamlessly transfers feed from external silos directly into individual tier hoppers automatically.
Advantages:
- Zero Feed Waste: Cuts feed loss by up to 8%-10%, saving significant operational costs over each batch.
- Uniform Growth Rates: Ensures equal access to feed for all birds simultaneously, resulting in highly consistent slaughter weights.
- Labor Savings: Eliminates manual feeding entirely, drastically reducing daily workload and labor overhead.
Automatic Manure Removal System: Features & Advantages
Features:
- PP (Polypropylene) Manure Belts: Installed beneath every cage tier, featuring high tensile strength, acid resistance, and smooth anti-stick surfaces.
- Transverse & Inclined Conveyors: Automatically collects manure from tier belts and transports it out of the chicken house directly into trucks.
- High-Power Scraping Blades: Precision scrapers clean the belts thoroughly on every cycle without leaving wet residue.
Advantages:
- Superior House Hygiene & Air Quality: Frequent manure removal drops ammonia and hydrogen sulfide levels to near zero, preventing respiratory diseases.
- Drier Manure Output: Keeps manure moisture low, making it easier to transport, store, or sell as organic fertilizer.
- Maintenance-Free Operation: Heavy-duty drive rollers and automatic tracking devices prevent belt alignment issues.
Client Success Stories & Feedback
"We upgraded our 50,000-broiler farm in South East Asia from floor raising to this automatic cage system. Our stocking density tripled, FCR dropped from 1.65 to 1.48, and labor costs were cut by 60%. The hot-dip galvanizing quality is exceptional."
"The automatic manure removal and feeding systems work flawlessly. Ammonia odor inside the house dropped significantly, and our mortality rate dropped under 2%. The installation team sent by the supplier was extremely professional."
After-Sales Service & FAQ
Our Turnkey Service Commitment:
- Free 3D Farm Layout Design: Tailored CAD layouts based on your land dimensions and local climate.
- On-Site Installation Supervision: Experienced engineers dispatched to your farm to guide assembly, electrical wiring, and commissioning.
- Free Worker Training: On-site operational training for your farm management and technical crew.
- 15-Year Structural Warranty: Guaranteed replacement support for cage frame corrosion defects.
Frequently Asked Questions (FAQ)
Q1: How many broilers can I raise in a 12m x 120m poultry house?
A: With a 4-tier automatic battery cage system, a standard 12m x 120m house can easily accommodate 30,000 to 40,000 broilers, compared to only 12,000 to 14,000 on the floor.
Q2: Will the cage mesh damage the broilers' feet or breasts?
A: No. Our bottom mesh is specially engineered with high-density PVC coating or flexible galvanized wire mesh, providing soft support that prevents breast blisters and leg injuries.
Q3: How long does installation take?
A: For a standard 30,000-bird automated house, installation typically takes 20 to 25 days with our supervised engineering guidance and your local team.
Q4: How do you handle shipping and container loading?
A: All cage frames, feed troughs, and automated components are packed in seaworthy steel bundles and wooden crates to prevent scratches and transport damage during sea freight.
